Configuring Events

5 min

To log into the Adobe Experience Platform, and open Adobe Journey Optimizer, check the Introduction Section.

Event overview

To get an overview of all events in Adobe Journey Optimizer:

In the menu on the left side, under Administration, click on Configurations. You will see a set of tiles. Click on Manage in the Events tile to get an overview with all existing events.

Configuring an event

We'll be configuring an event that we can use in our journey. The event should trigger whenever a customer proceeds to the Personal Current Account application form on the mobile app.

If you do not want to create your own events for this exercise you can skip this step and use pre-created events when building your Journey.

Event for Application Start

To configure a new event for the application start, click Create Event. A menu will open on the right side.

Set the name to [your name]PCAApplication_Start.
For schema, click on Select a schema and choose Demo System - Event Schema for Mobile App (Global v1.1) v.1 in the dropdown.
For fields, click on 4 fields selected, a pop-up window will open. In this window we can select the data fields we want to have available for the event.
1. Scroll down (or use the search field) to find Event Type (eventType) and check the checkbox
2. Click Ok. The window will close and you should now see 5 fields selected.
For the event ID condition, click on Add a condition. Another pop-up window will open.
1. Drag the Event Type (eventType) from the left menu onto the right side.
2. You'll be prompted to choose a value. Look for web.fsi.pca.start. check this value then scroll back up and click Ok.
3. The rule should now say Event Type (eventType) is equal to web.fsi.pca.start. Click Ok to save and close the pop-up window.
Check if the namespace is set to ECID (ECID).
Check if the profile identifier is set to The ecid of core. If this is not set, select Context > _demopotemea > identification > core > ecid.
Your screen should look like the image below. Click Save.

Event for Application Submit

To configure a new event for the application submission, click Create Event. A menu will open on the right side.

Set the name to [your name]PCAApplication_Submit.
For schema, click on Select a schema and choose Demo System - Event Schema for Mobile App (Global v1.1) v.1 in the dropdown.
For fields, click on 4 fields selected, a pop-up window will open. In this window we can select the data fields we want to have available for the event.
1. Scroll down (or use the search field) to find Event Type (eventType) and check the checkbox
2. Click Ok. The window will close and you should now see 5 fields selected.
For the event ID condition, click on Add a condition. Another pop-up window will open.
1. Drag the Event Type (eventType) from the left menu onto the right side.
2. You'll be prompted to choose a value. Look for web.fsi.pca.apply. check this value then scroll back up and click Ok.
3. The rule should now say Event Type (eventType) is equal to web.fsi.pca.apply. Click Ok to save and close the pop-up window.
Check if the namespace is set to ECID (ECID).
Check if the profile identifier is set to The ecid of core. If this is not set, select Context > _demopotemea > identification > core > ecid.

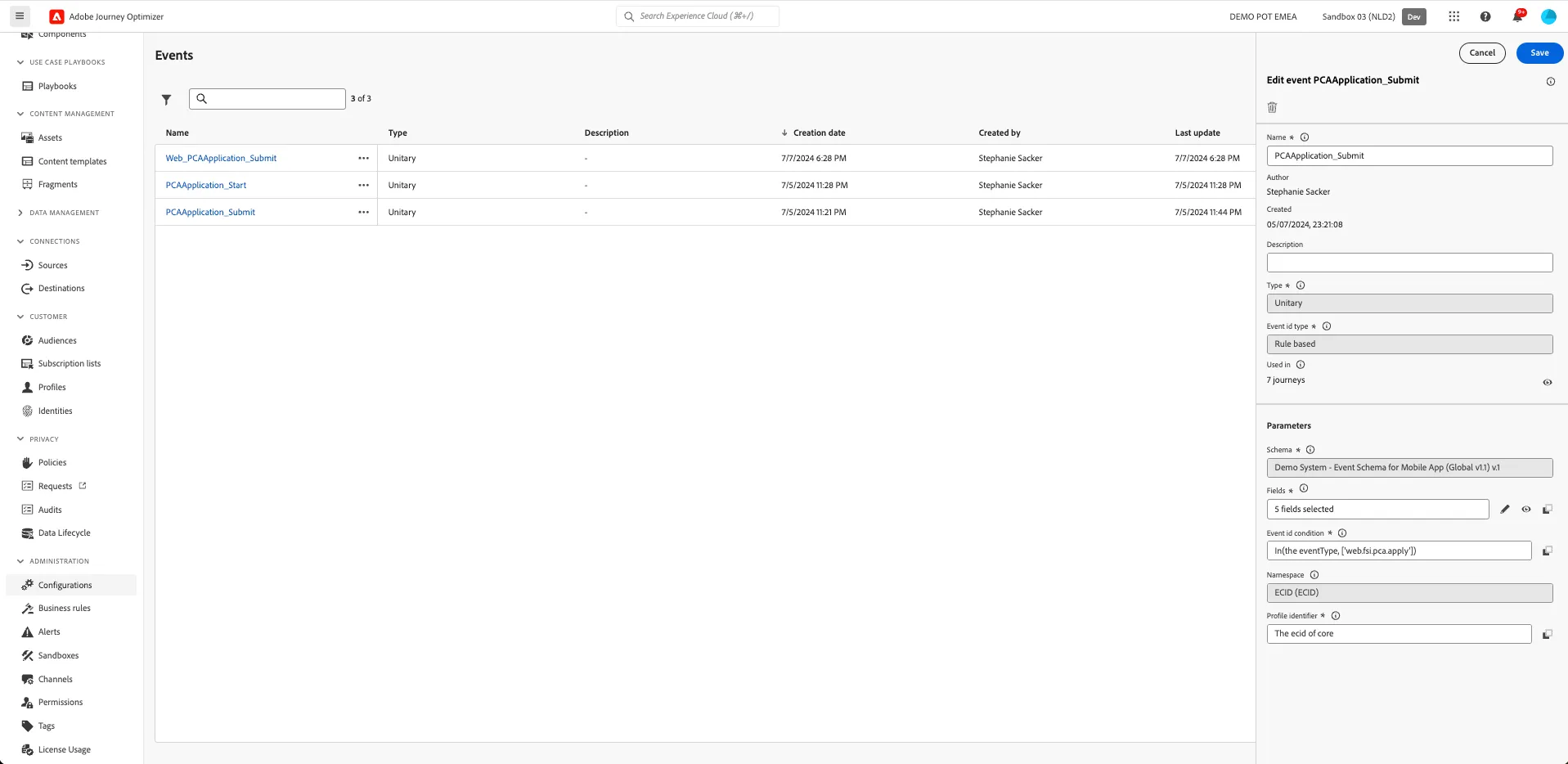

Your screen should look like the image below. Click Save.
