Optional - Configuring an event

To log into the Adobe Experience Platform, and open Adobe Journey Optimizer, check the Introduction section.

Event overview

To get an overview of all events in Adobe Journey Optimizer:

In the menu on the left side, under Administration, click on Configurations. You will see a set of tiles. Click on Manage in the Events tile to get an overview with all existing events.

Configuring an event

We'll be configuring an event that we can use in our journey. The event should trigger whenever a customer books a flight.

To configure a new event, click Create Event. A menu will open on the right side.

Set the name to [your initials]_flightBooking. e.g. PP_flightBooking.
Input Description as Flight Booking event
For schema, click on Select a schema and choose Demo System - Event Schema for Website (Global v1.1) v.1 in the dropdown.
For fields, click on 4 fields selected, a pop-up window will open. In this window we can select the data fields we want to have available for the event.
1. Scroll down (or use the search field) to find Event Type (eventType) and check the checkbox
2. Scroll down to the folder reservations and check the following fields:
  1. Confirmation Number (confirmationNumber)
  2. In the folder flightReservations select the following fields:
    _adobedemoamericas275 > Arrival City (arrivalCity)
    Arrival Airport Code (arrivalAirportCode)
    Arrival Date (arrivalDate)
    Departure Airport Code (departureAirportCode)
    Departure Date (departureDate)
    Fare Class (fareClass)
    Flight Number (flightNumber)
    Length (length)
3. Click Ok. The window will close and you should now see 14 fields selected.
For the event ID condition, click on Add a condition. Another pop-up window will open.
1. Drag the Event Type (eventType) from the left menu onto the right side.
2. You'll be prompted to choose a value. Look for flight.booking. check this value then scroll back up and click Ok at the top.
3. The rule should now say Event Type (eventType) is equal to flight.booking. Click Ok to save and close the pop-up window.

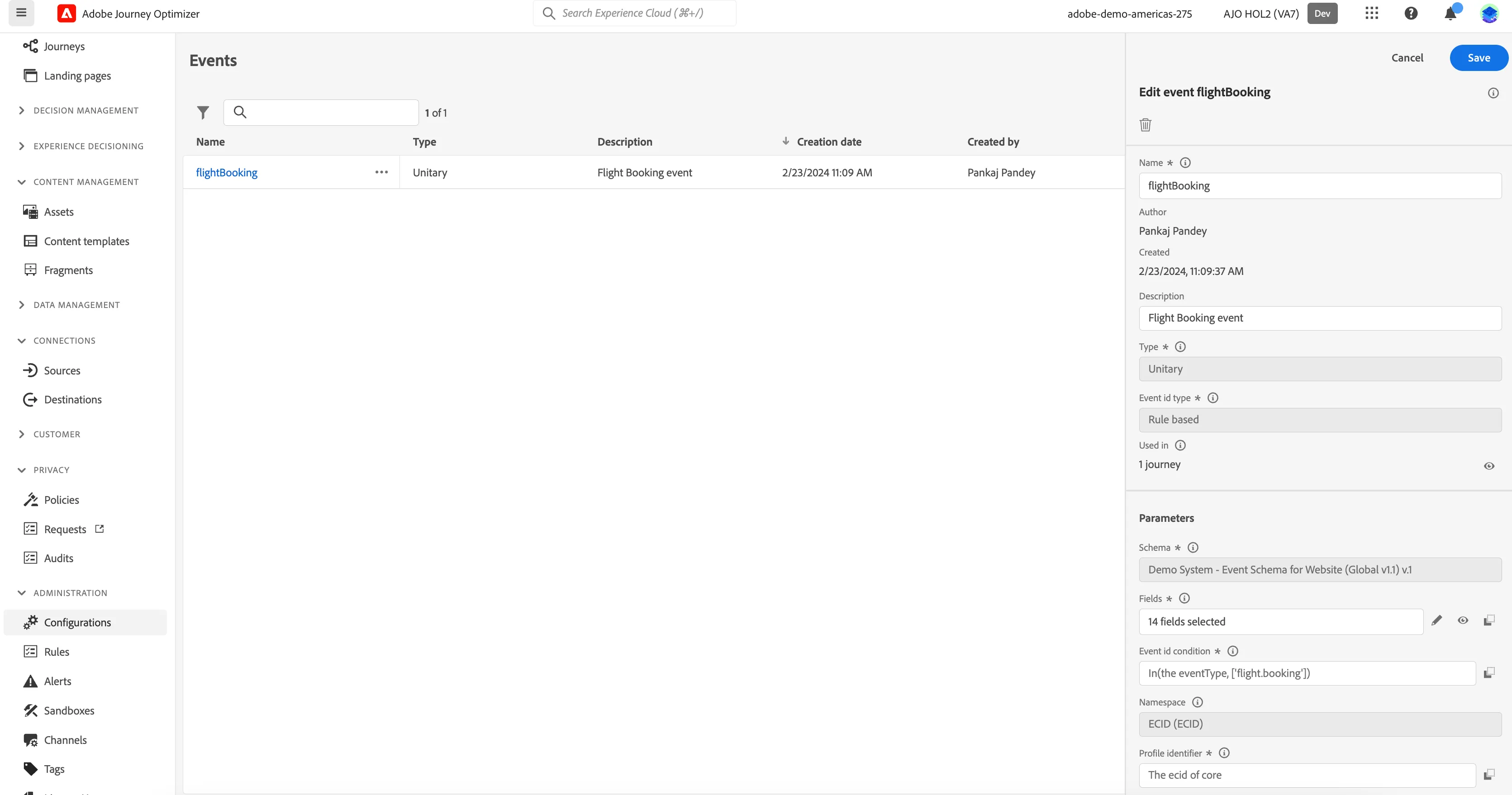

Your screen should look like the image below. Click Save.
