[Bonus] Streaming Events via API

7 min

In this exercise we will use a streaming connection to ingest XDM-formatted JSON records in real-time to the Adobe Experience Platform.

We will use Insomnia to send these events to an HTTP Streaming endpoint.

Go to the menu Connections > Sources > Catalog
Select My sources

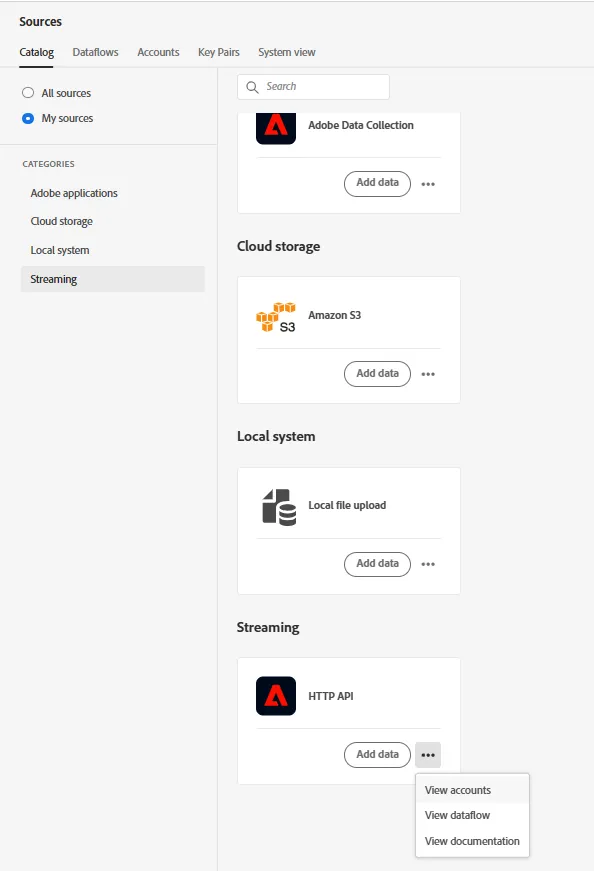

Go to Streaming source and expand the menu

Click on the menu View dataflow

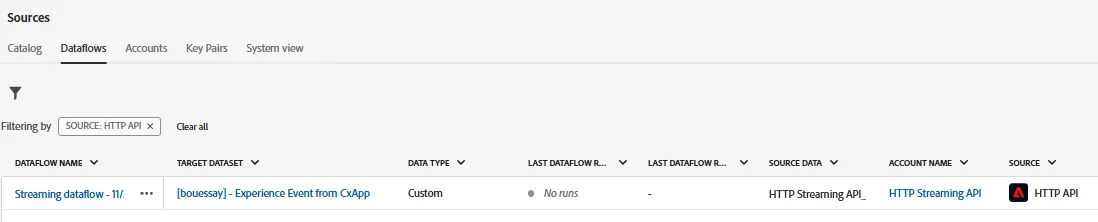

Click on the dataflow name

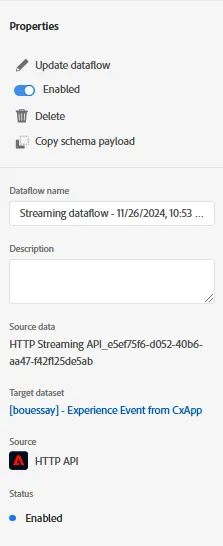

On the right panel, get a cURL example by clicking on the command Copy schema payload

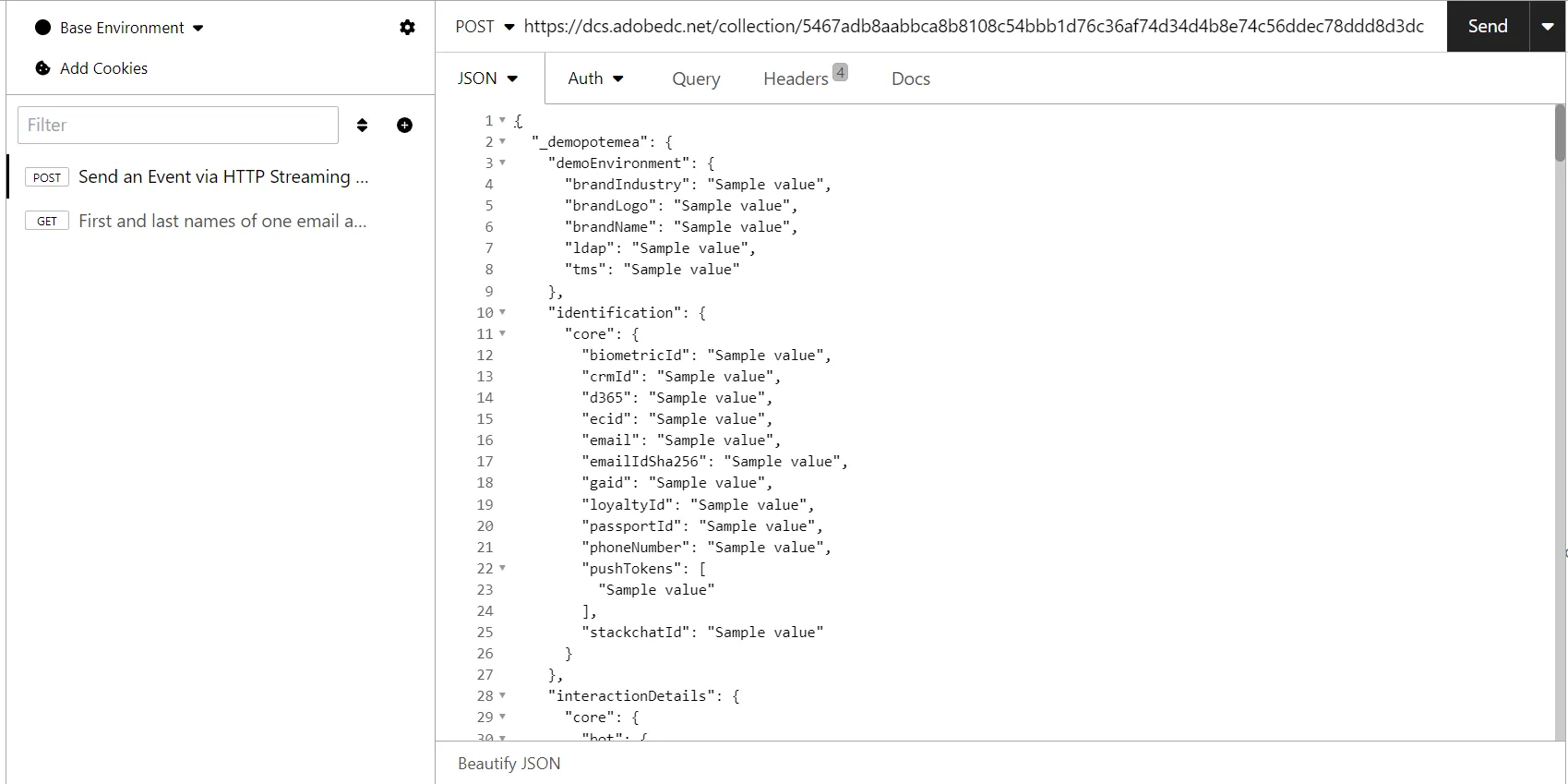

Then, open Insomnia and add a new request by pasting the cURL request

This is an example of an XDM payload ; replace the body by the following JSON

{
            "eventType":"event_name_test",
            "_id":"EC0dYLr4bGnO",
            "timestamp":"2024-11-25T10:44:59.971Z",
            "identityMap":{
               "email":[
                  {
                     "id":"[email protected]",
                     "primary":true
                  }
               ],
               "phone":[
                  {
                     "id":"0102031014"
                  }
               ]
            },
            "_demopotemea":{
               "identification":{
                  "core":{
                     "email":"[email protected]",
                     "phoneNumber":"0102031014"
                  }
               },
               "interactionDetails":{
                  "core":{
                     "channel":"cx"
                  }
               }
            }
         }
      }
}

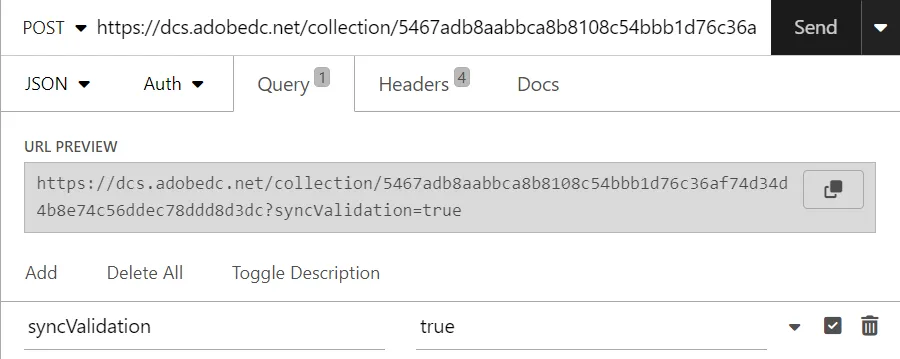

To get a synchronous validation, go to the Query tab and add the parameter syncValidation = true

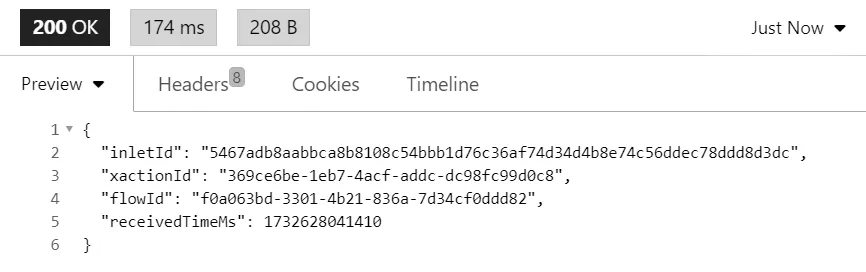

Click on the Send button to get a 200 response like that:

Wait a few seconds

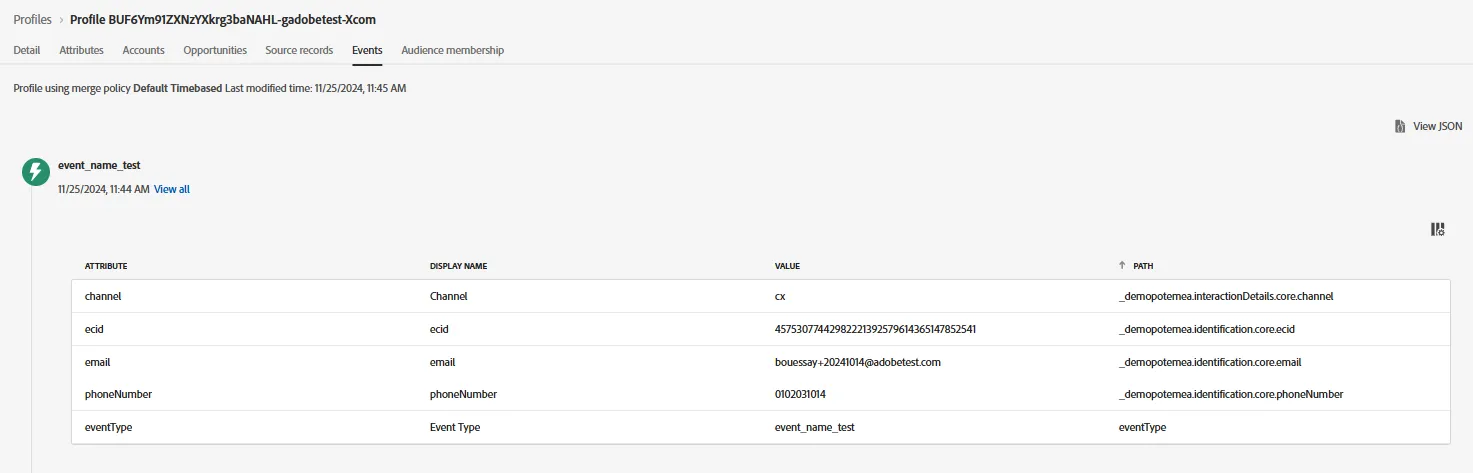

Search for the Profile and go to the Events tab

This is one way to ingest Experience Events to Adobe Experience Platform via a Streaming API!
