Introduction
The left side rail contains the Panel menu (where new panels can be dragged to the project), the Visualisation menu (where visualisations can be dragged to a panel), and the Components menu (where Dimensions, Metrics and Filters are found and can be dragged to the panel visualisations).
Create a new project
- Create a new project

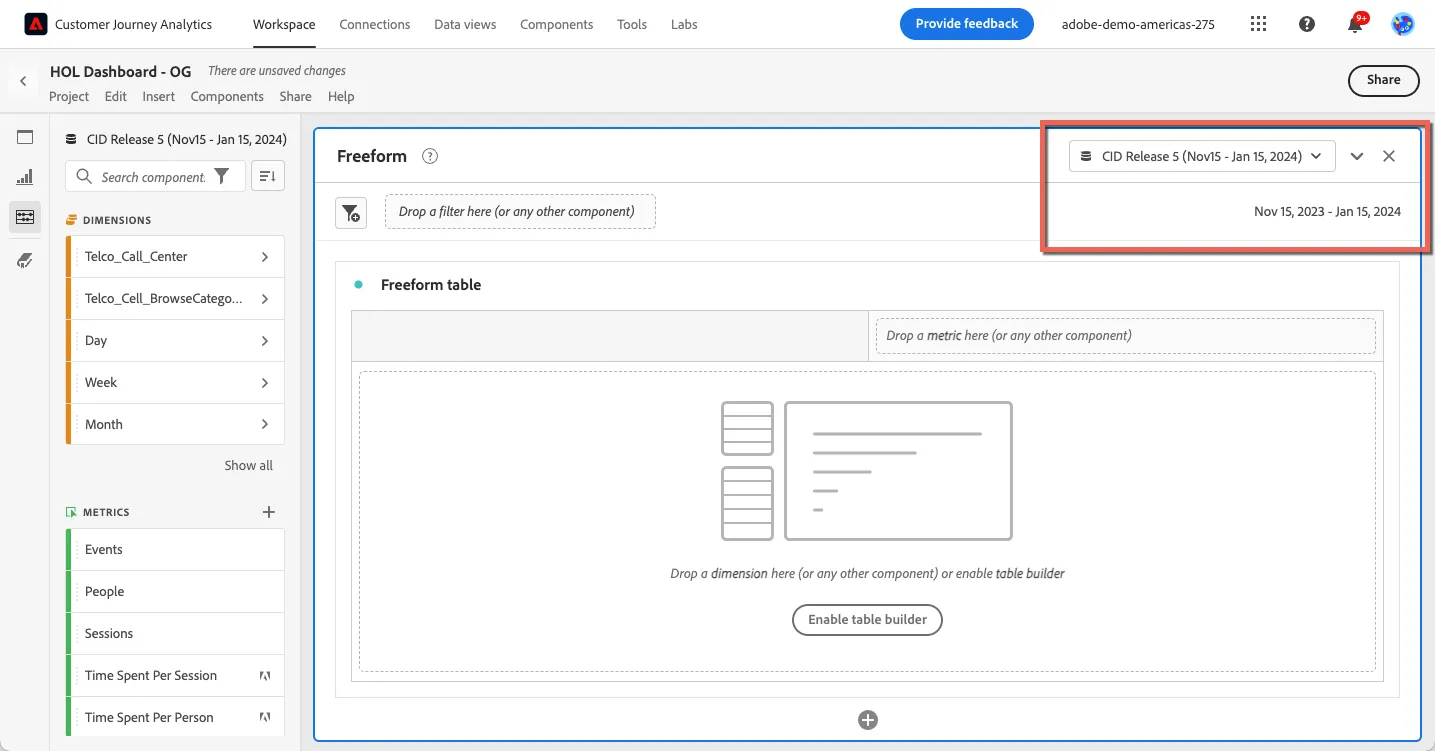

2. Ensure that the CID Release 5 (Nov15 - Jan 15, 2024) is selected in the Data View selector
3. Set Reporting Date Range to Nov 15 2023 - Jan 15, 2024 from table below and click Apply.

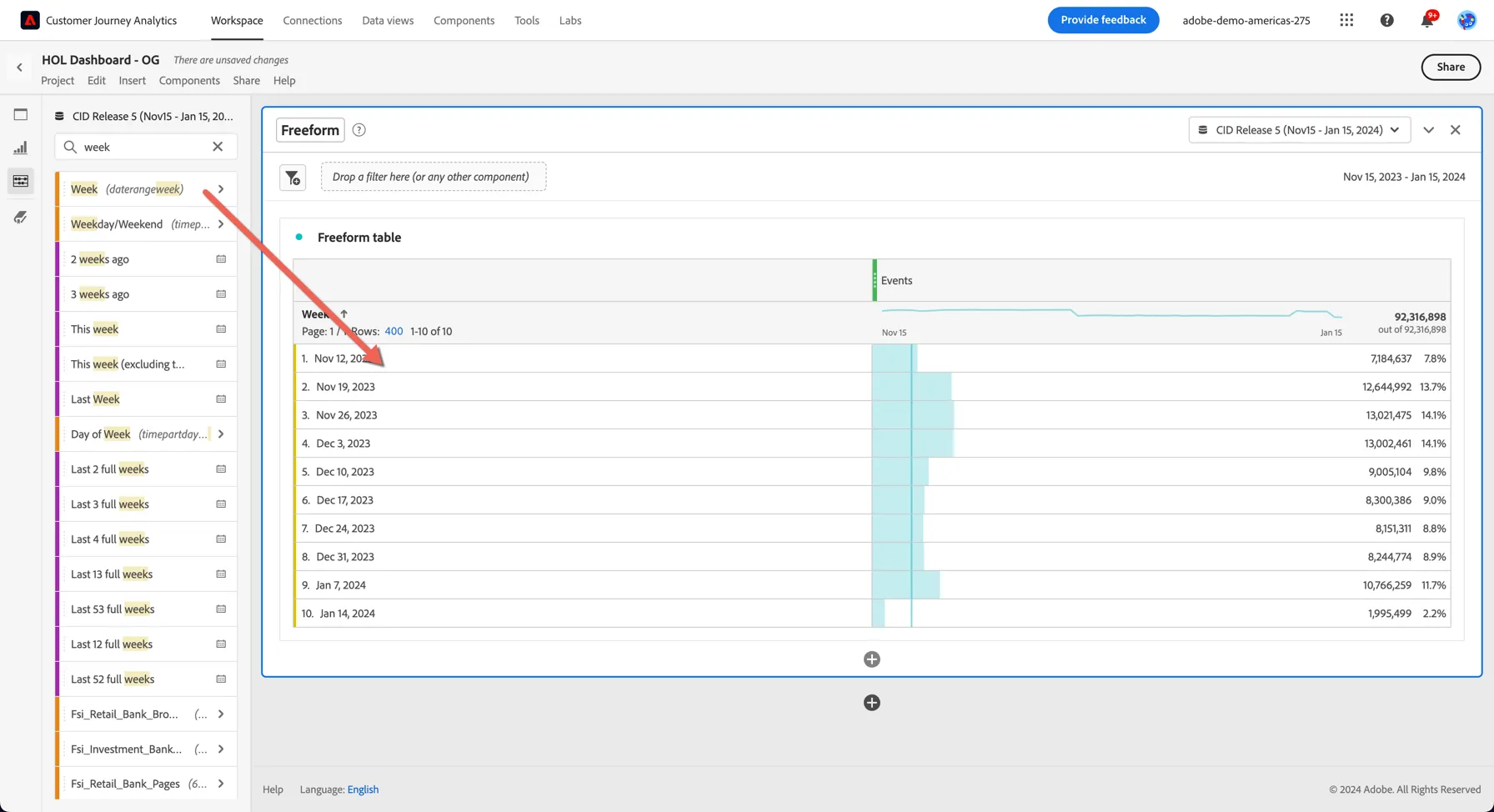

4. Drag the Week dimension from the Components menu and drop it into the Freeform Table visualization in the Panel.

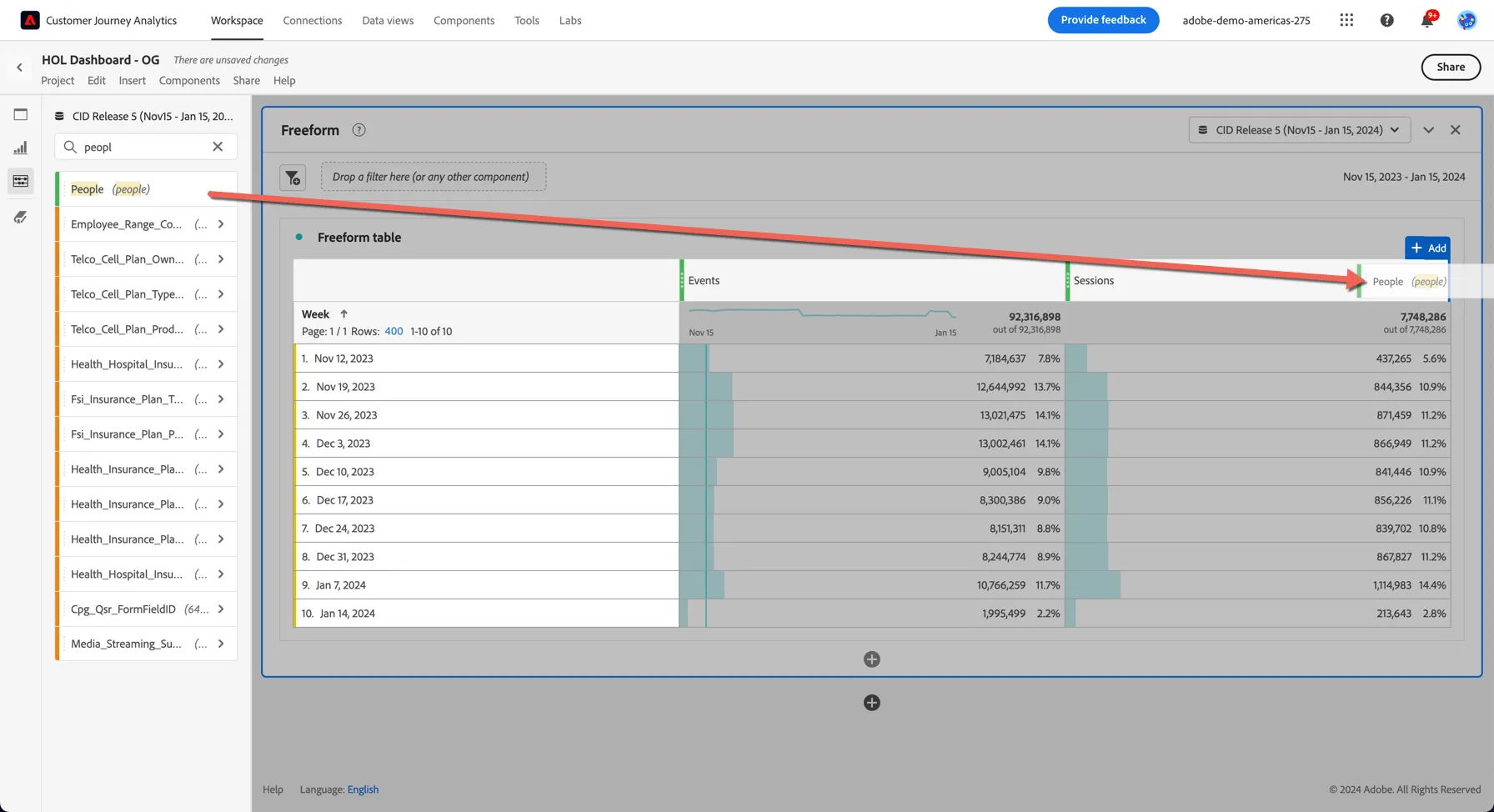

5. Drag the Sessions and the People metric from the Components menu and add these to the table
Add a Line Visualization

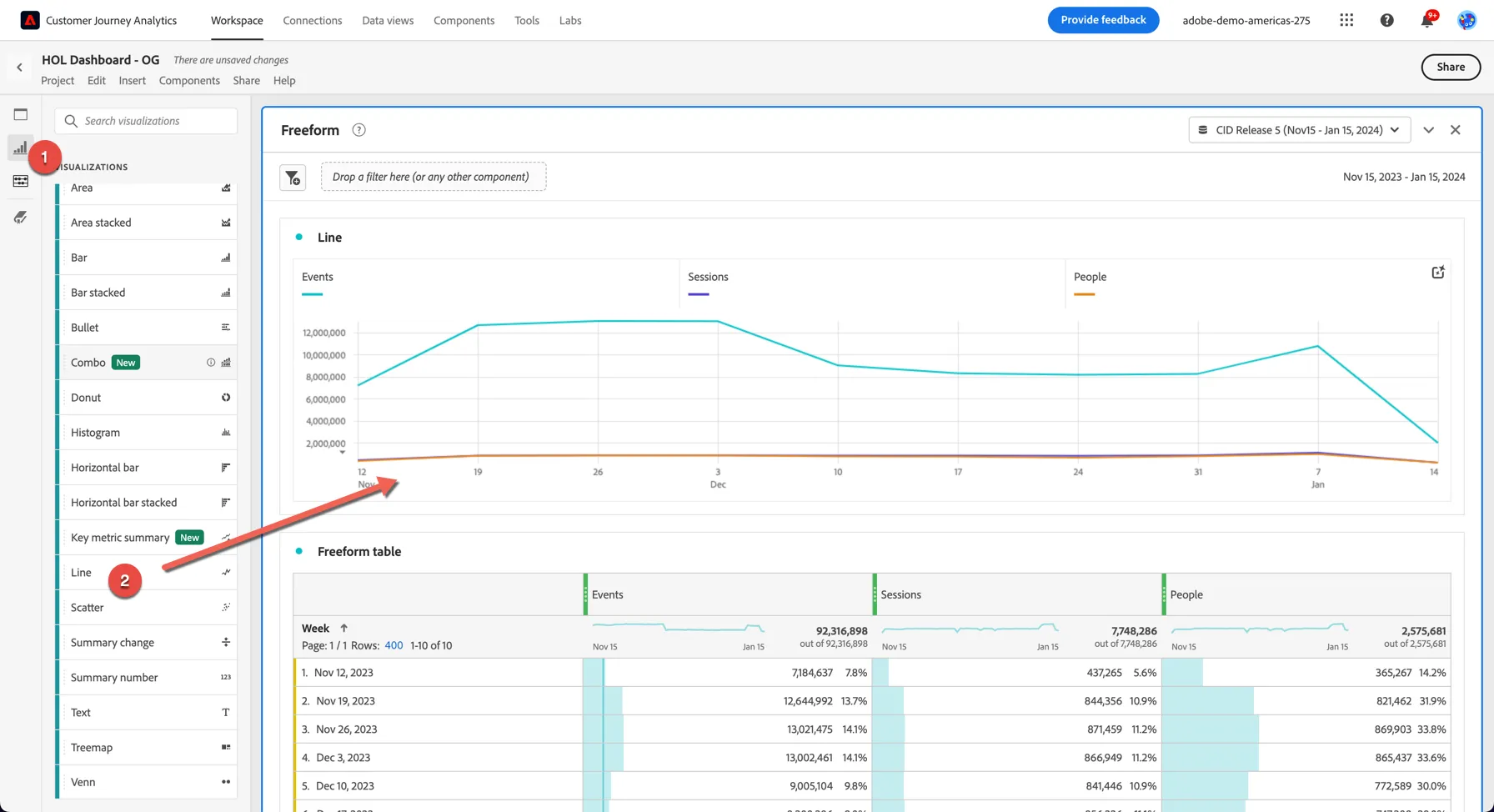

- Click on Visualisations in the left menu and drag the Line visualisation to the Dashboard panel above the Base KPIs Trended table.

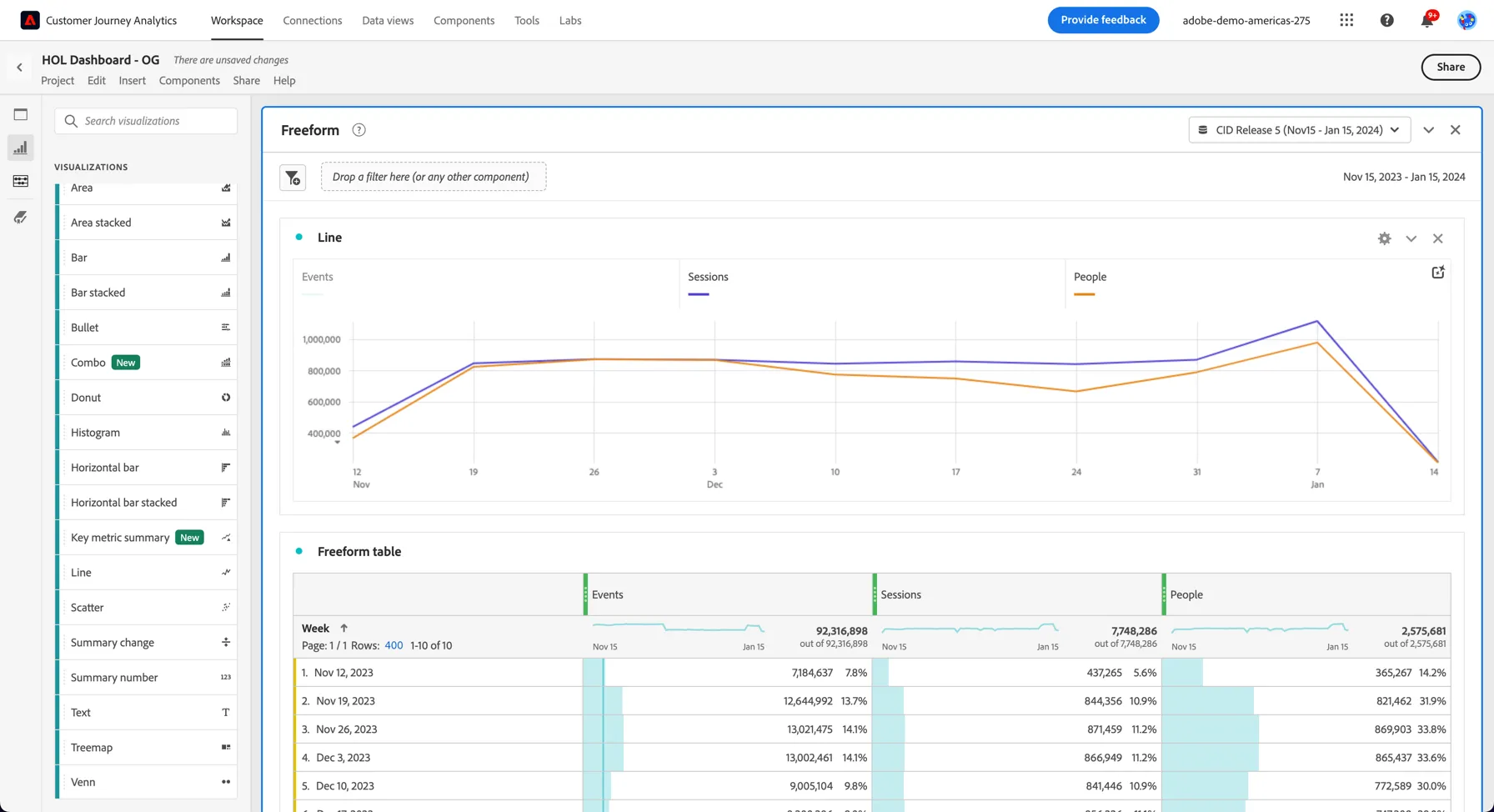

2. The Line visualisation will automatically connect to the data table closest to it and will visualise the dimensions and metrics in that table. The dimension is the x-axis and the metrics are trended. You can click individual metrics to disable them in the visualisation.

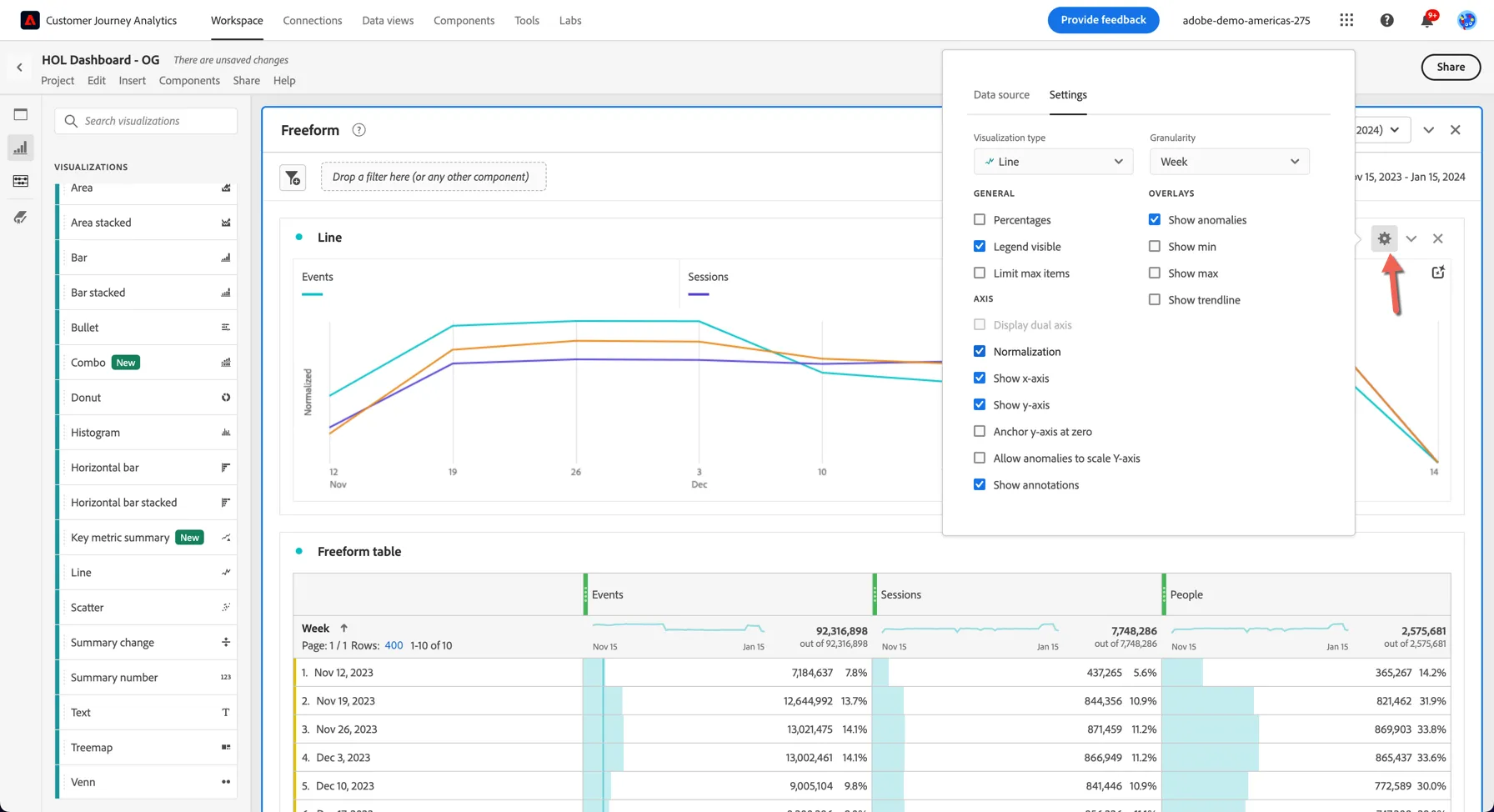

3. You can adjust the settings of the visualisation by clicking on the cog icon at the top right.

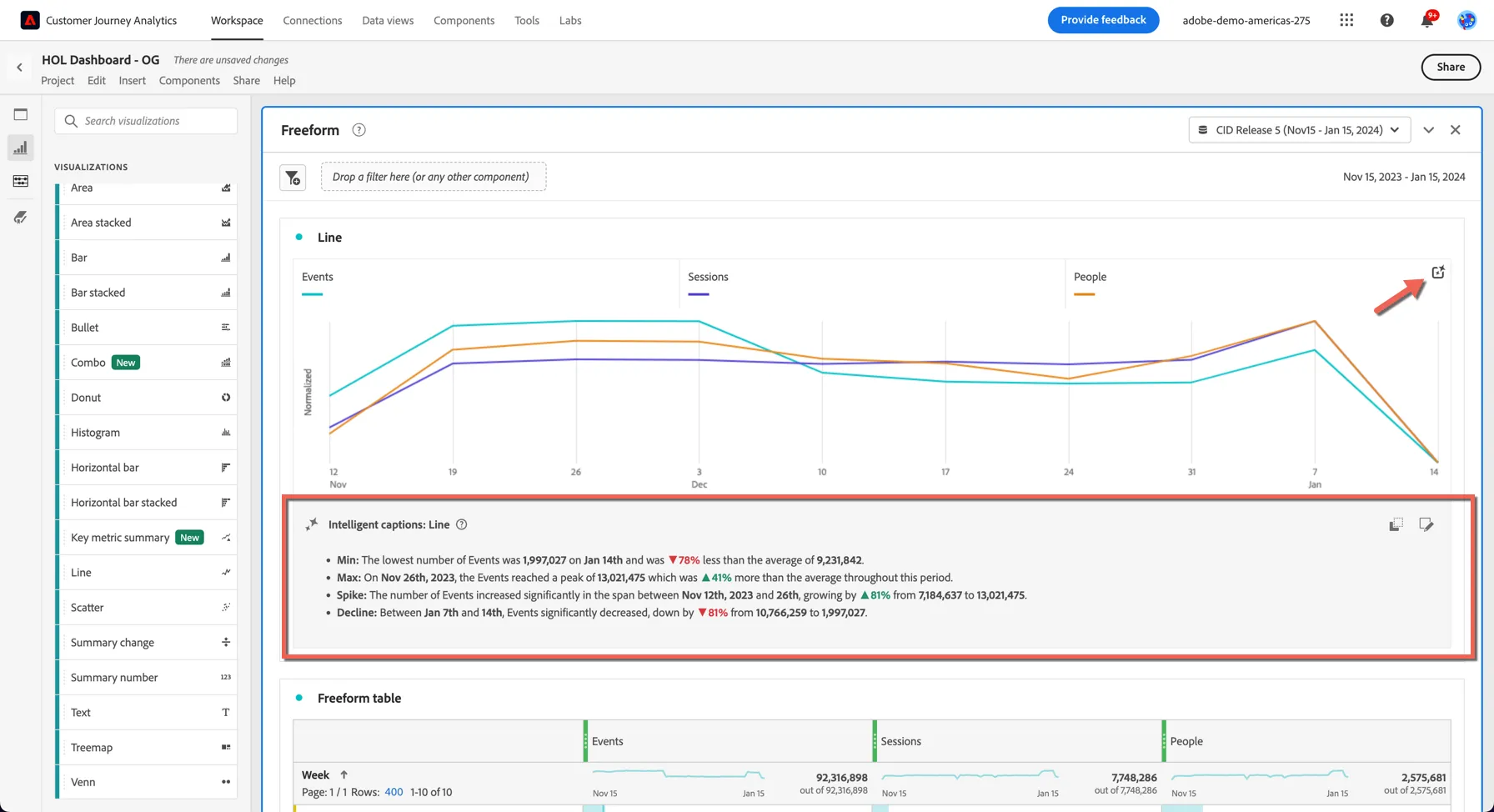

4. You can use Adobe Sensei to generate intelligent captions describing the trends seen from your data by clicking the AI icon in the top right.
Add a filter
In CJA, your events will be linked to your profile (at least for offline event and logged in session), so you can use your CRM data to filter your data.
- Search for Country in the left panel. Click on the ">" icon just right of Country.

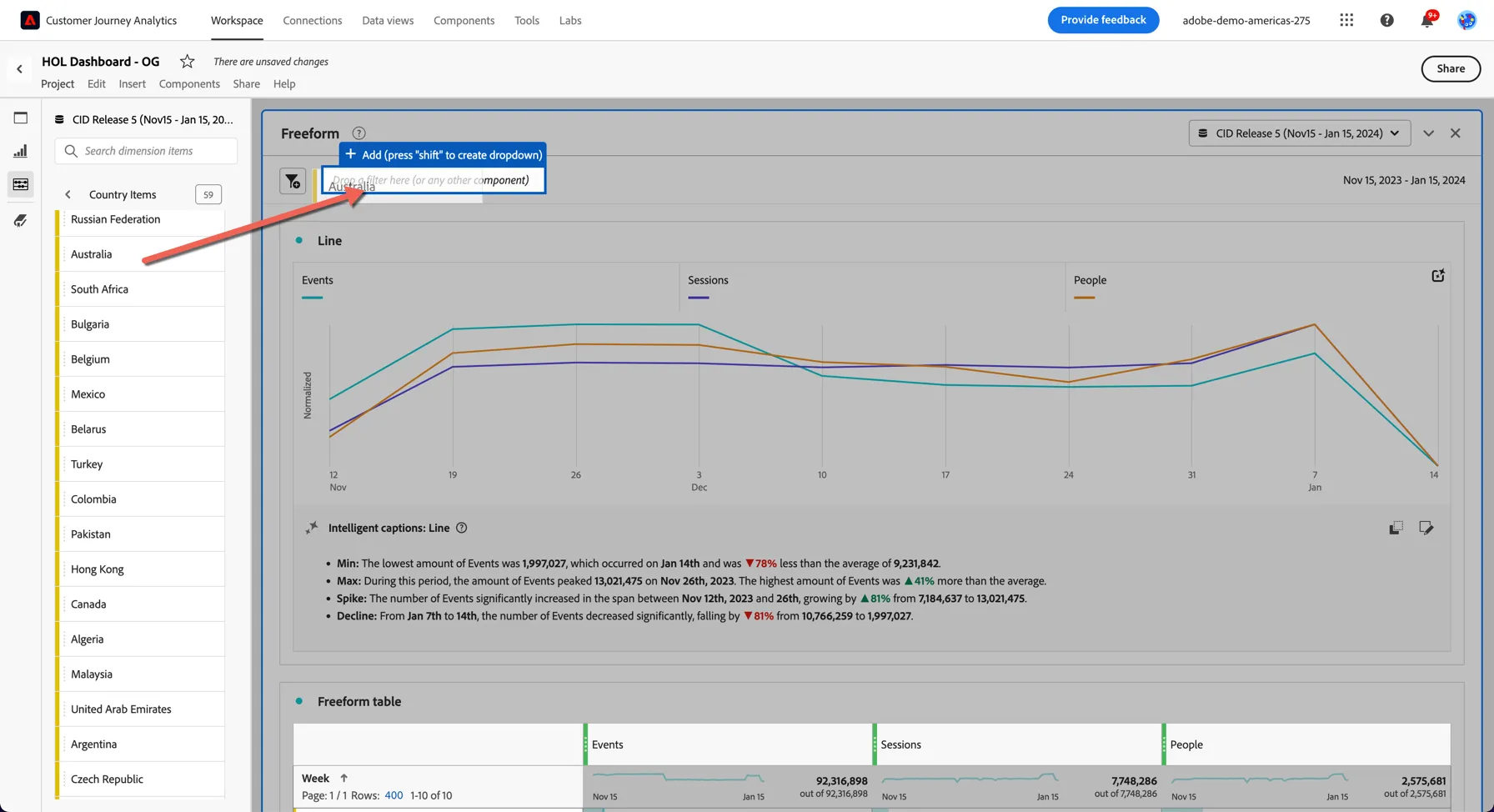

- Select one of the value, and drag and drop it on top of your dashboard, in the component drag a filter here.

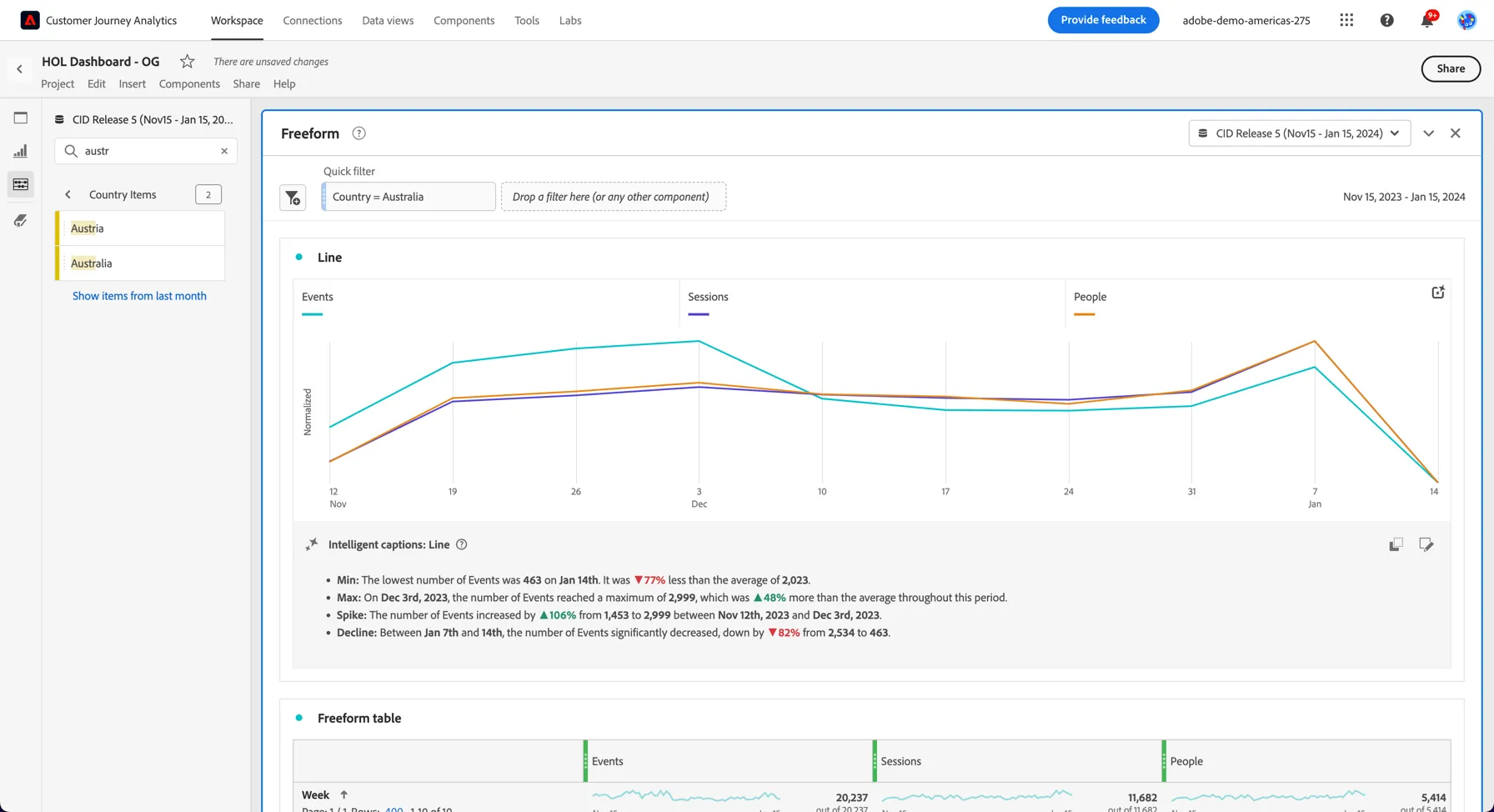

3. You will see that all your data are now only displayed for customer who lived in the selected city
Save your project
- Now would be a good time to save this Project so we don't lose any of our work.
- Click on Project and then Save, or Control/Command S to open the Save Project window.
- Name the project HOL Dashboard - {your initials} and select Company Folder to store it in. Then click to Save the project.
Click Save Project.
Congratulations! You have created your first CJA project!
