Data Ingestion via API

18 min

In this exercise we want to show how we can use the Batch Ingestion APIs to ingest a CSV file of Campaign Summary data into an AEP Dataset.

We want to ensure the CSV file is mapped correctly to XDM format during this ingestion process.

We will use Postman to send this file to the Batch ingestion endpoint.

In this case we are using the Batch Ingestion API, since we are ingesting summary data, which doesn't need to be real-time. You can also stream in events using Adobe Streaming Ingestion API for real-time data ingestion use cases.

We are using a CSV file in this example for continuity purposes, but the Batch and Streaming Ingestion APIs also accept JSON and Parquet file formats.

Download Postman Collection & Environment

In Postman, there are 2 concepts: Environments and Collections.

The Environment contains all of your environmental variables. In the Environment, you’ll find things like the IMSOrg of the Platform environment, alongside security credentials like your private key and others. The environment file is named XXX.postman_environment.json.
The Collection contains a number of API requests that you can use. We have bundled these in a file named XXX.postman_collection.json.

We have combined both files in a ZIP file for you. To access:

Download the environment and collection below.
Extract the zip-file to a location on your computer.

IKEA Orientation APIs.zip

Authenticate using Postman

To follow this part of the orientation, ensure you have:

installed Postman;
downloaded the ZIP file containing environment and collection;
configured Postman environment.

Before we can interact with Adobe Experience Platform APIs, we first need to authenticate. To do so:

Open the IKEA Orientation collection.
Ensure that the correct Environment Credential in IKEA Temp Project is selected from the top right environment drop down.

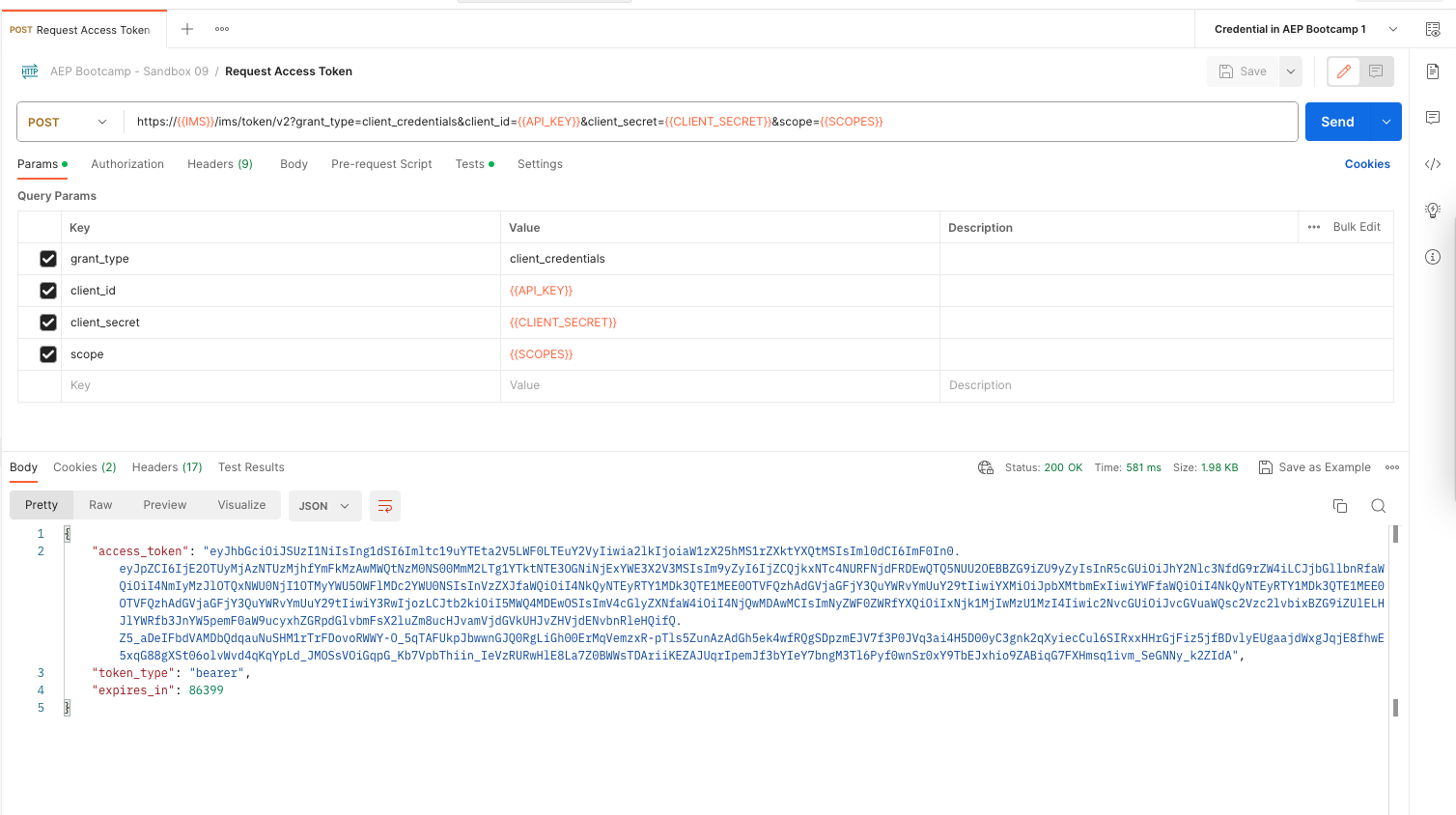

Select POST Request access token. It will now be displayed in the middle of your screen.
Click on Send.

You will see a response displayed in the Body section. You will see an access token with a specific value and expiration window (expires_in). The token is automatically saved in your environment to be reused in the next API calls.

The token that we've received is valid for 24 hours. This means that after 24 hours, you will have to generate a new token by running this request again.

Create a Batch

In our example, we have already created both the Dataset and the Mapping Set in the interest of time (step 1 and 2 in the user flow at the bottom of this page).

You will see these two API requests in the For Info Only Folder in the Postman collection if you are interested in seeing how this was done.

Let's ingest our Campaign Summary data into our dataset CampaignSummaryData_API

Select POST Create Batch. It will now be displayed in the middle of your screen.
Click on Body to see the JSON payload we are sending.

You will see that in the payload we've included:

The Dataset ID for where we want to send the data.
The Input Format which specifies the expected file format of the proceeding ingestion.
The Mapping set ID and version which references the mapping set that was created using the POST Create Mapping Set request - mapping the CSV headers to the XDM fields.

The full payload:

{
            "datasetId": "{{DATASET_ID}}",
            "inputFormat": {
                "format": "csv"
            },
            "tags": {
                "aep_sip_mapper": ["mapping-set-id:{{MAPPING_SET_ID}}","mapping-set-version:0"]
            }
}

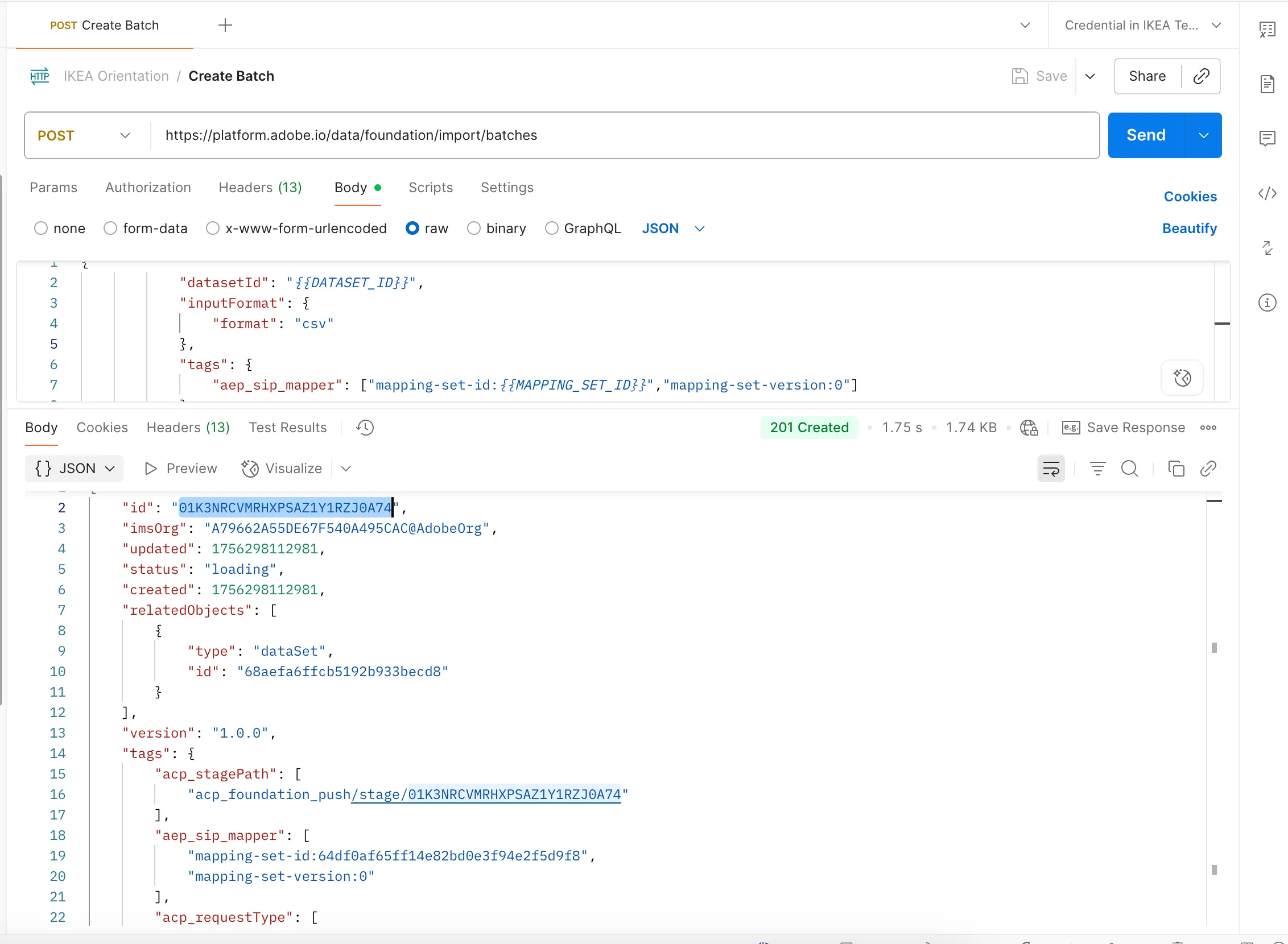

Click Send to execute this request.
You will see a response with status 201 Created if the event has been received successfully.

You have now created a new batch. From the JSON response, make a note of the id value.

In this case it was: 01K3NRCVMRHXPSAZ1Y1RZJ0A74- yours will be different.

Upload a File

Let's now sent the file we want to ingest into our Dataset.

Select PUT Upload Files. It will now be displayed in the middle of your screen.
Click on Body to see the file we are sending.
Download the CSV file:

Offline_2025_data.csv

Replace the CSV in the Body with the file you have just downloaded.

Click "x" next to the file name to remove the file.
Click Select File and choose the file from adobe Offline_2025_data.csv

We also need to ensure we are sending this file to the correct Batch, in the correct Dataset.

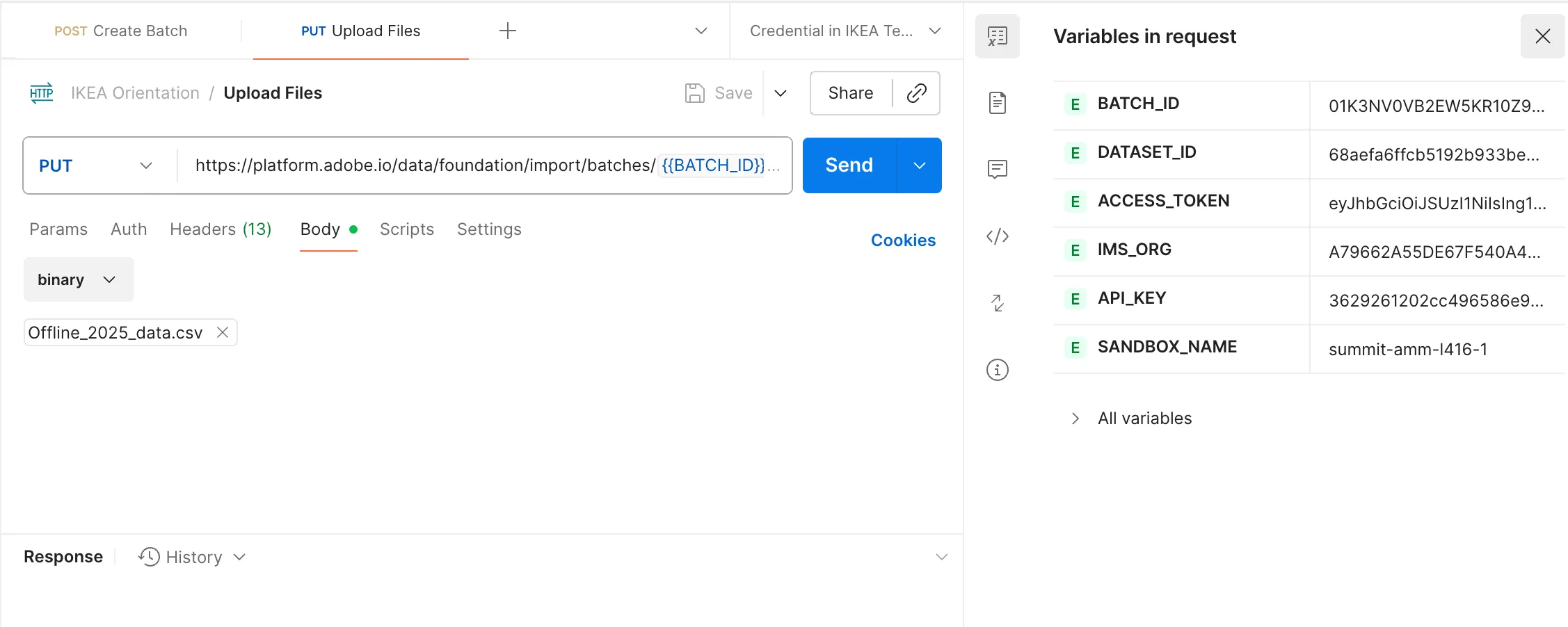

Open your Postman Environment variables by clicking in the top-right corner of the screen to expand the variables in request panel.

Replace the BATCH_ID Variable with the Batch ID you created and noted in the last step. E.g. 01K3NRCVMRHXPSAZ1Y1RZJ0A74

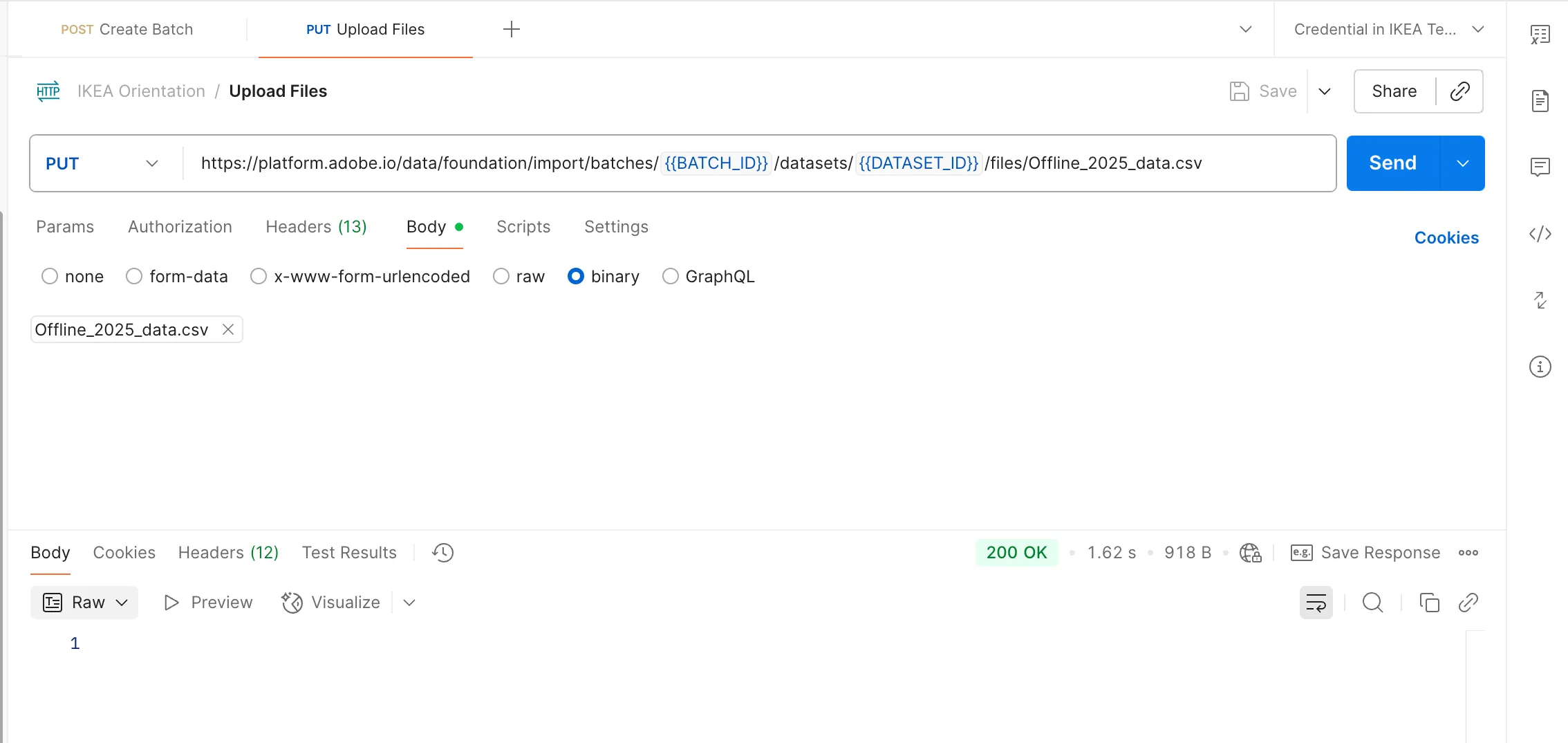

Click Send to execute this request and send the data to the Experience Platform.
You will see a response with status 200 OK if the event has been received successfully.

You have now uploaded the CSV file to your new batch.

Signal Batch Complete

After you upload all of your data files to the batch, you can signal the batch for completion.

Signaling completion causes the service to create Catalog DataSetFile entries for the uploaded files and associate them with the batch generated previously. The Catalog batch is marked successful, which triggers any downstream flows that can then work on the now available data.

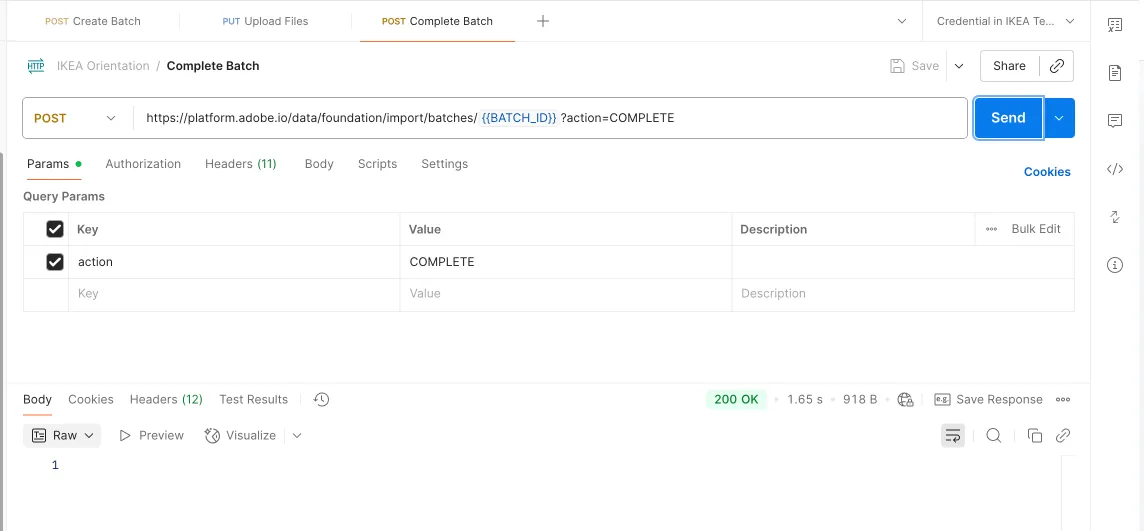

Select POST Complete Batch. It will now be displayed in the middle of your screen.
Click on Params to see the Query Parameters we are sending.

You will see that we've included:

The action set to value COMPLETE
Also the id of the batch you are marking as complete.

Click Send to execute this request and mark the batch as complete.
You will see a response with status 200 OK if the event has been received successfully.

Monitor Dataset Actvity

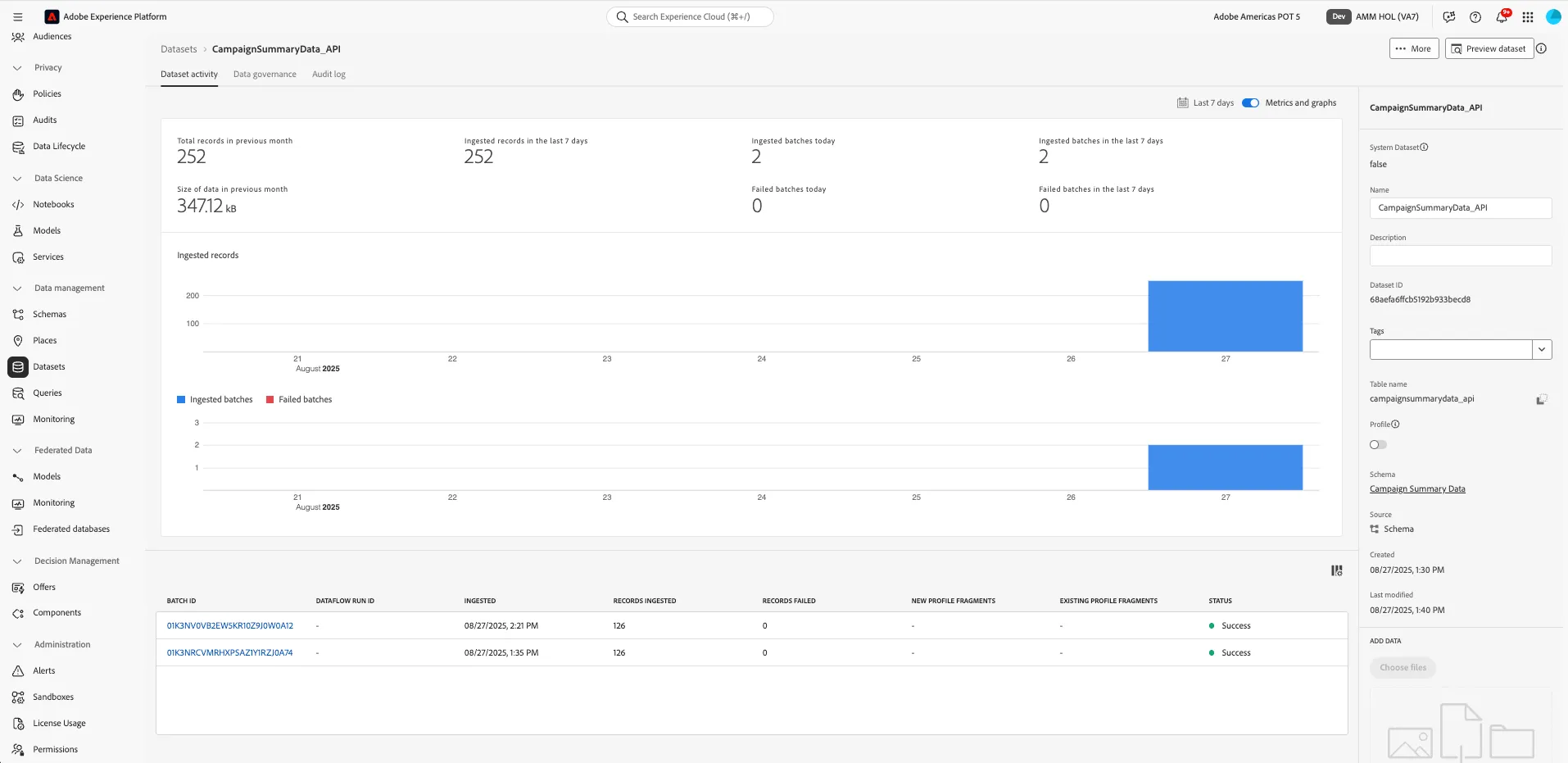

You can now check the Dataset Activity UI to see if your data has been ingested successfully.

Navigate to Datasets from the main left hand navigation.
Click the dataset CampaignSummaryData_API.
Look in the recent batches for successfully ingested records.

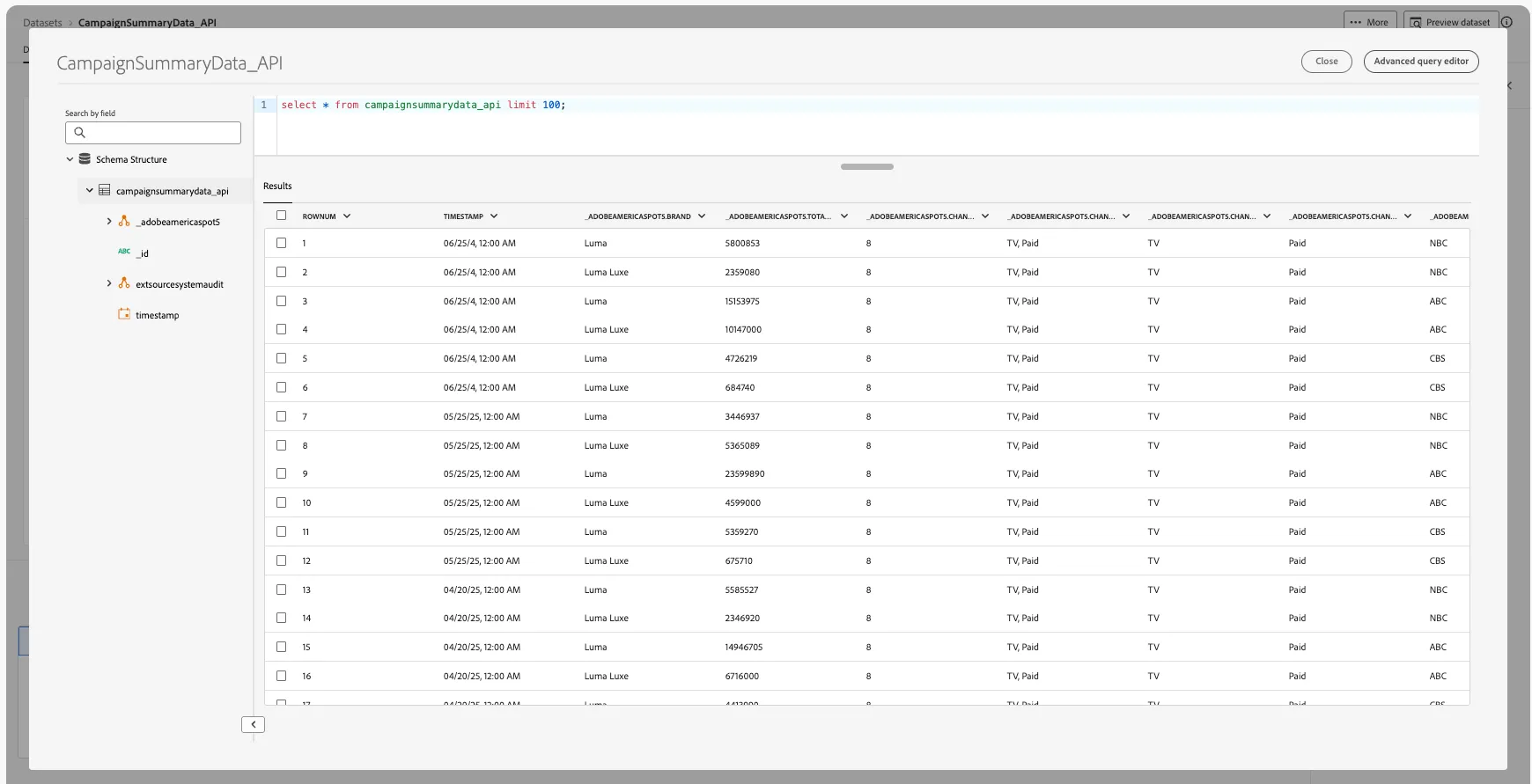

Select Preview Dataset to see what data has been ingested.

In Summary - The User Flow

We have sent a CSV file with Campaign Summary data to the dataset: CampaignSummaryData_API. The complete steps to do this are:

Create a dataset (can be via API or the UI)
- Dataset needs to refer to schema that should point to target schema.
Define mappings using either mapper UI or mapping service API.
- Mapper provides a framework to transform the data according to mappings defined using mapper service (in our case CSV > XDM).
Create a batch using bulk ingestion API.
- Add mapper related tag to created batch created in step 2.
Upload the file against batch using bulk ingestion API and close the batch.
Once batch is closed, AEP automatically transforms the data and updates the batch status.
User can monitor batch status.

With this, you’ve now successfully ingested Campaign Summary data to Adobe Experience Platform via the Batch Ingestion API!
