Schemas
Schemas define the structure of the data to be ingested. This lab will walk through the steps to create an Summary Metrics based schema for Adobe Mix Modeler.
Our goal is to create a schema that is required to onboard the following channel touchpoint summary data:
- AMM Touchpoints
- Data Batch Information
Create an Individual Profile Based Schema

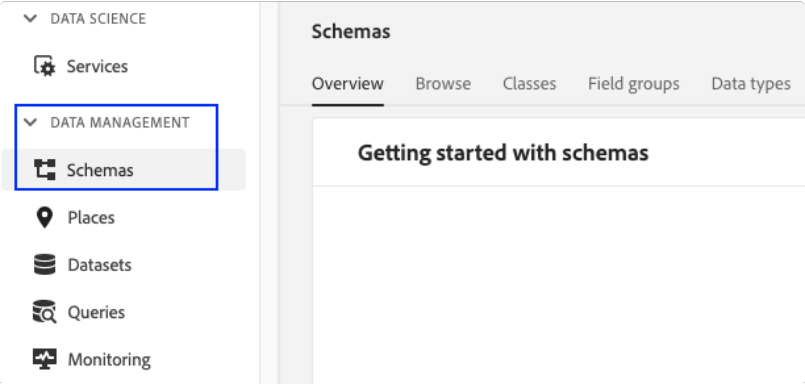

- Navigate to Schemas under Data Management in Adobe Experience Platform UI.
- Click on Create Schema on the top-right of your screen.
- Select Schema type as Standard
- Select Creation type as Manual. Note that this will take you into the workflow to build a schema.

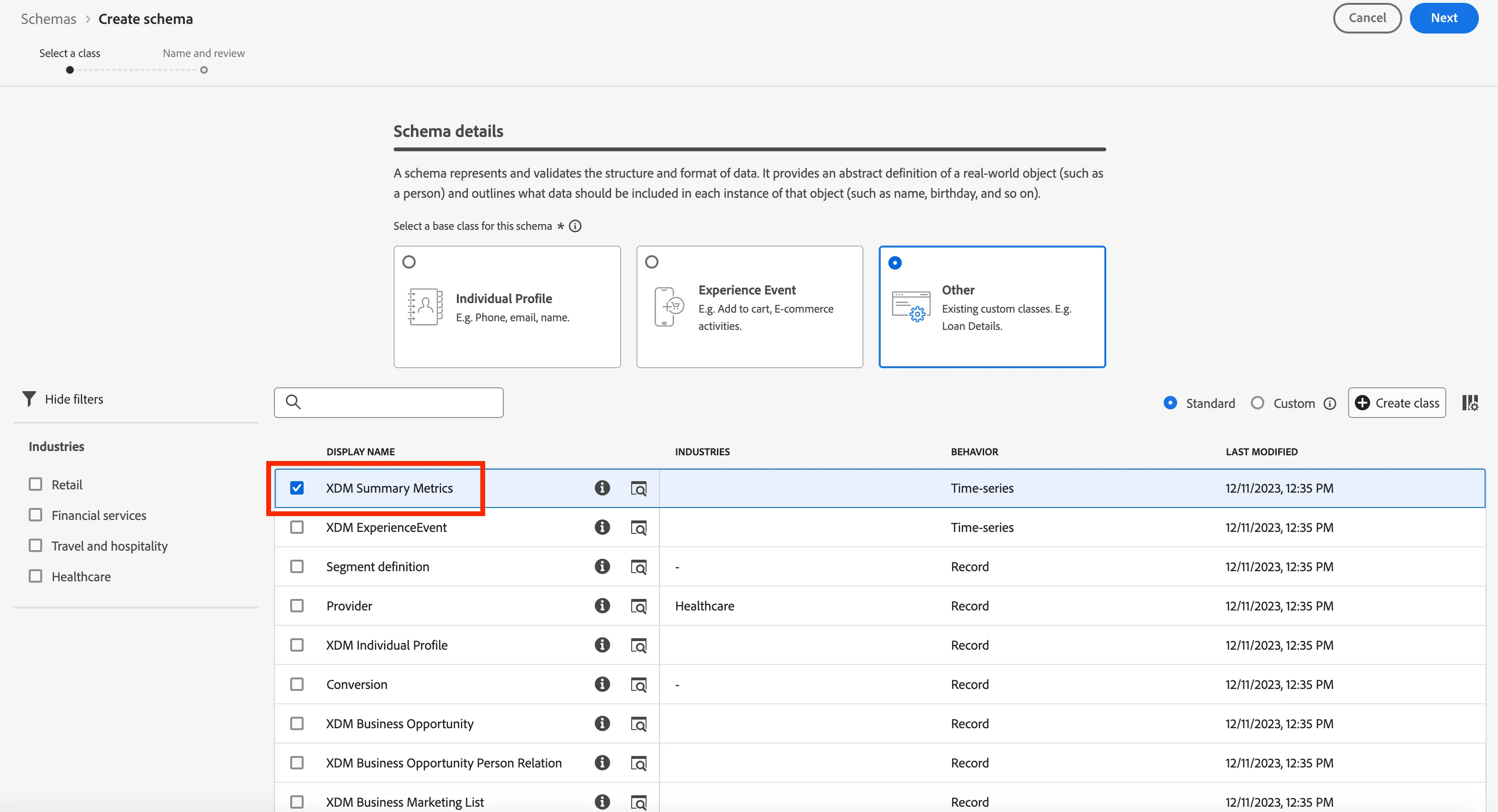

- Click on Other under the Schema Details section. Next you will select XDM Summary Metrics class for the schema then click Next.

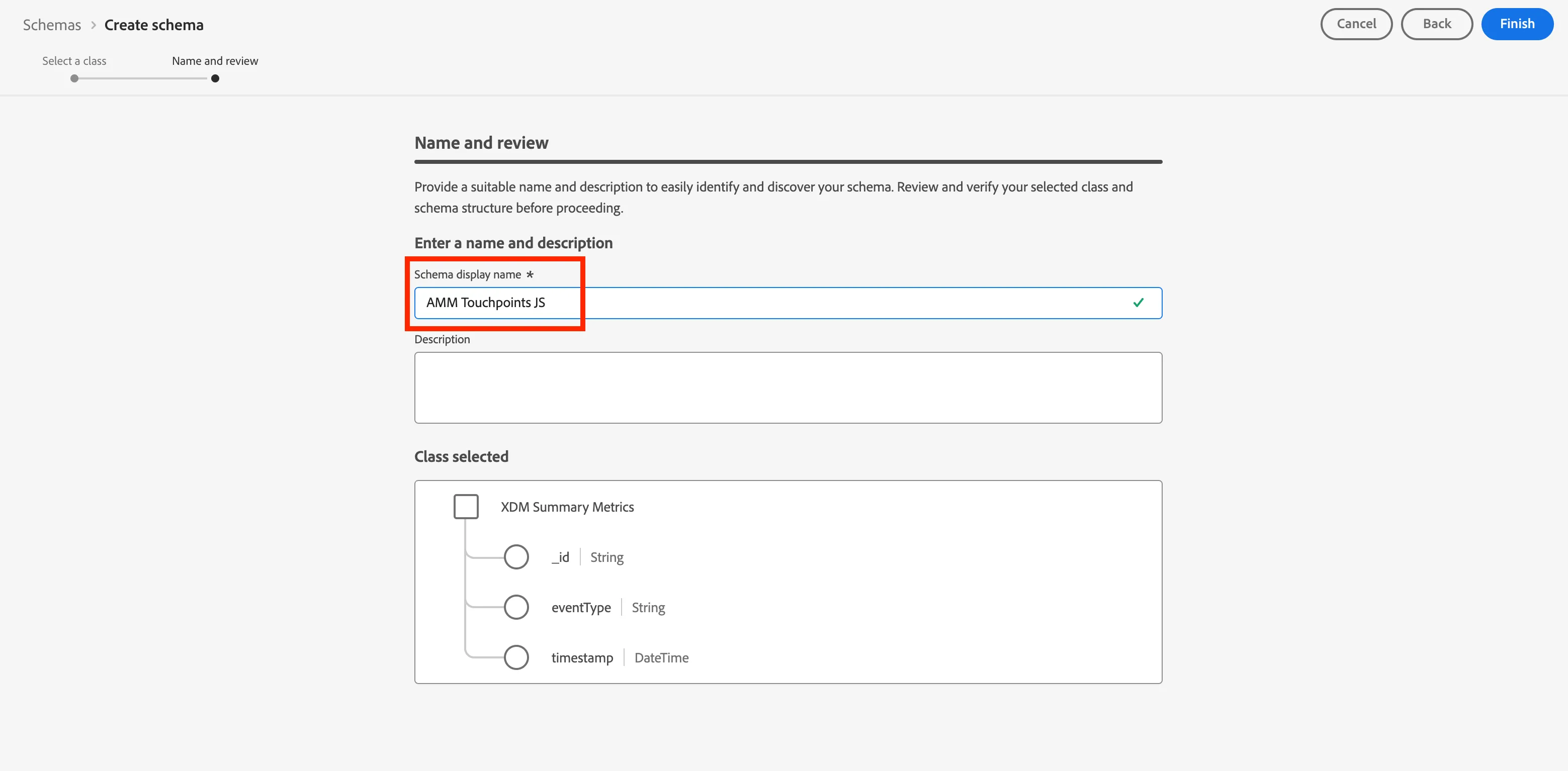

- Name your schema AMM Touchpoints+{{Participant Initials}} . Please make sure to add your initials to follow the schema name to avoid any naming conflicts with other lab participants. Click Finish to go to next step.
Adding existing field groups

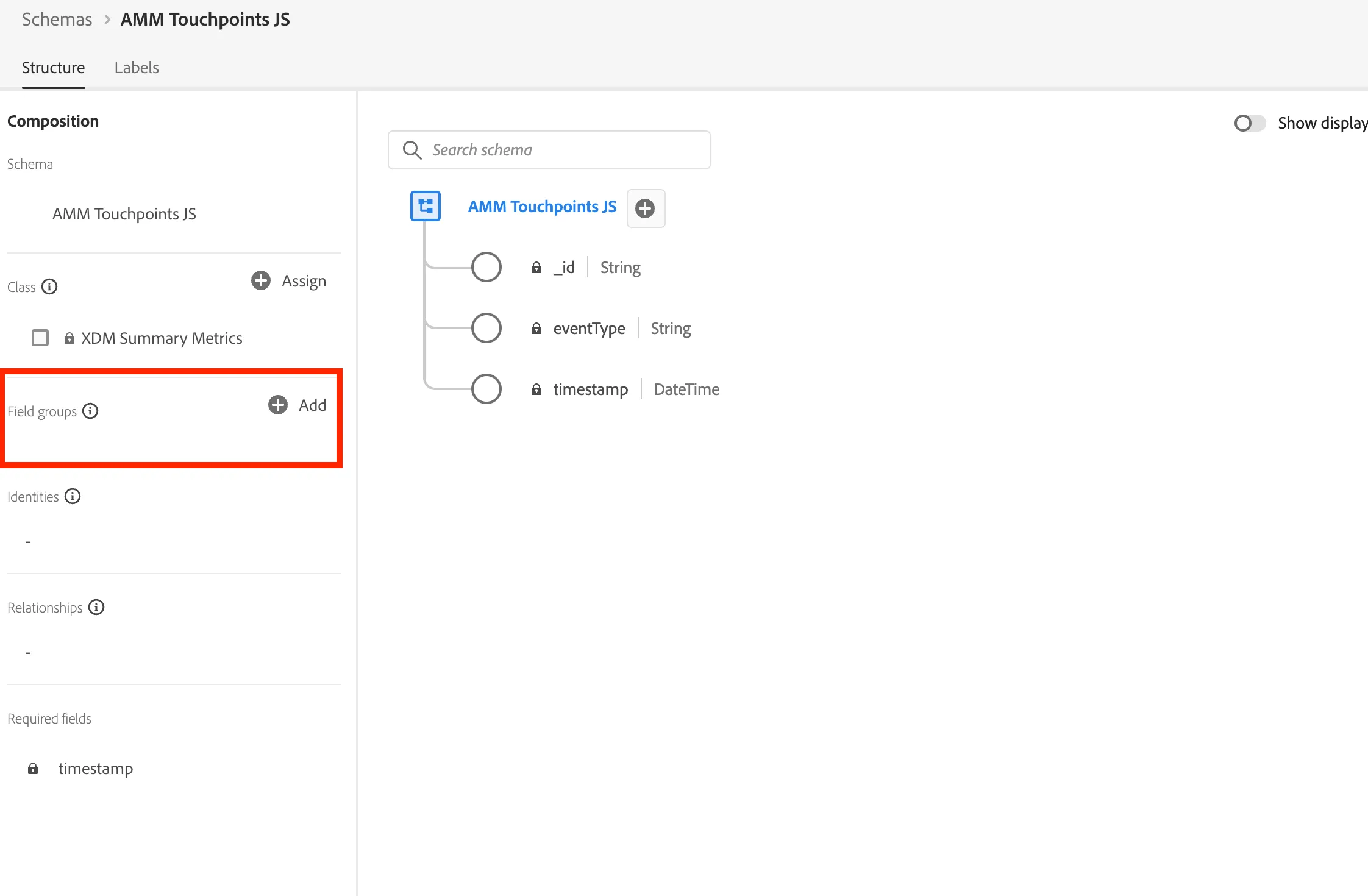

- Click on the Add icon within the Field groups section under Composition.

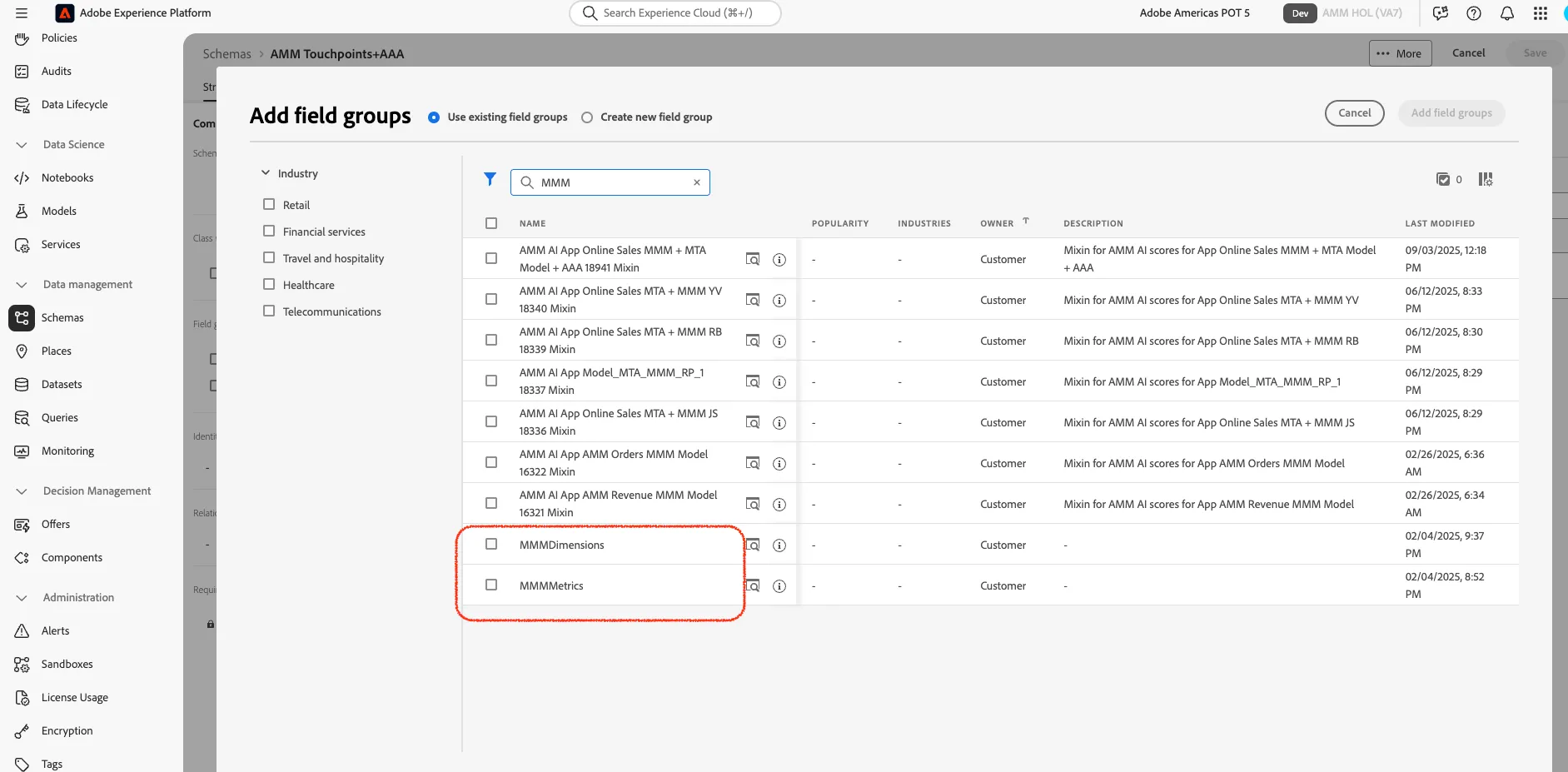

- Add the following existing field groups:
- MMMDimensions
- MMMMetrics
Creating a new field group
- Click on the Add icon within the Field groups section under Composition.

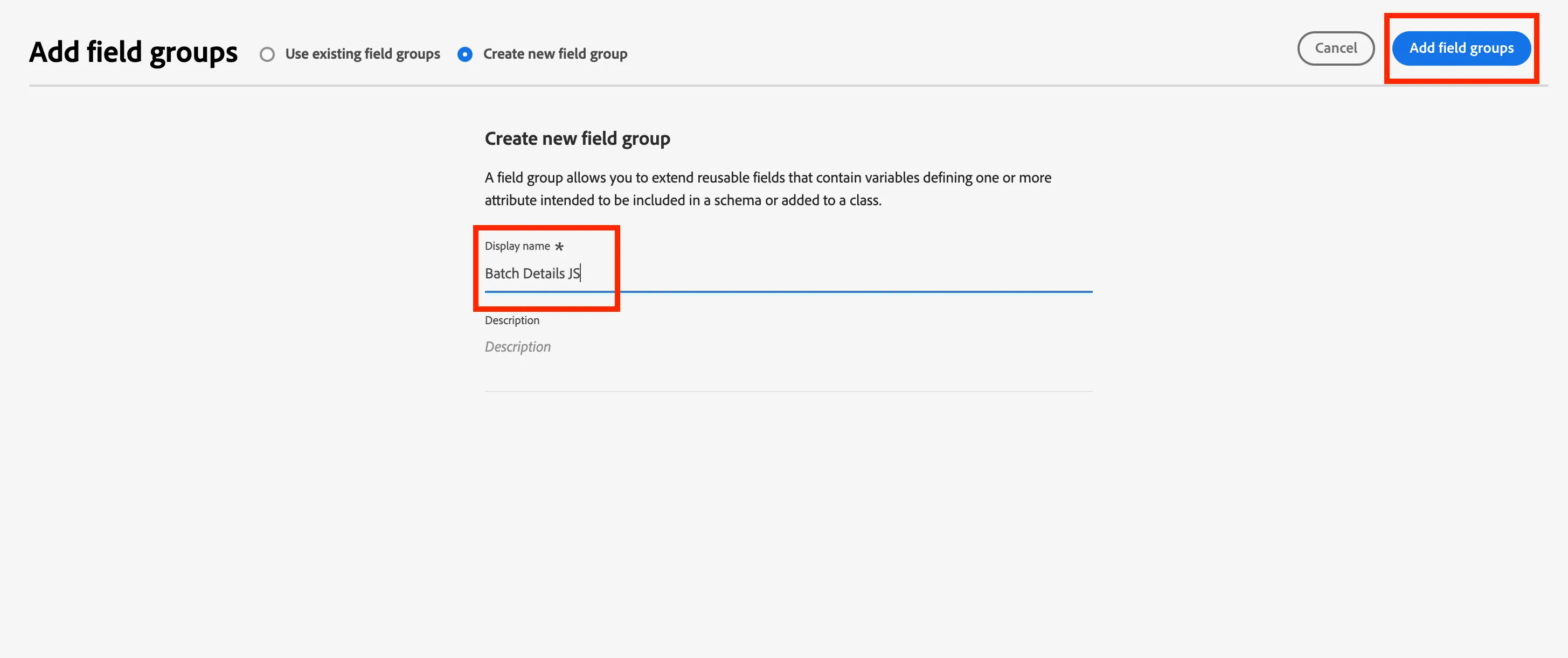

- Select Create new field group
- Name the field group as Batch Details+{{participant initials}}
- Click on Add Field Groups
Adding an object to your field group

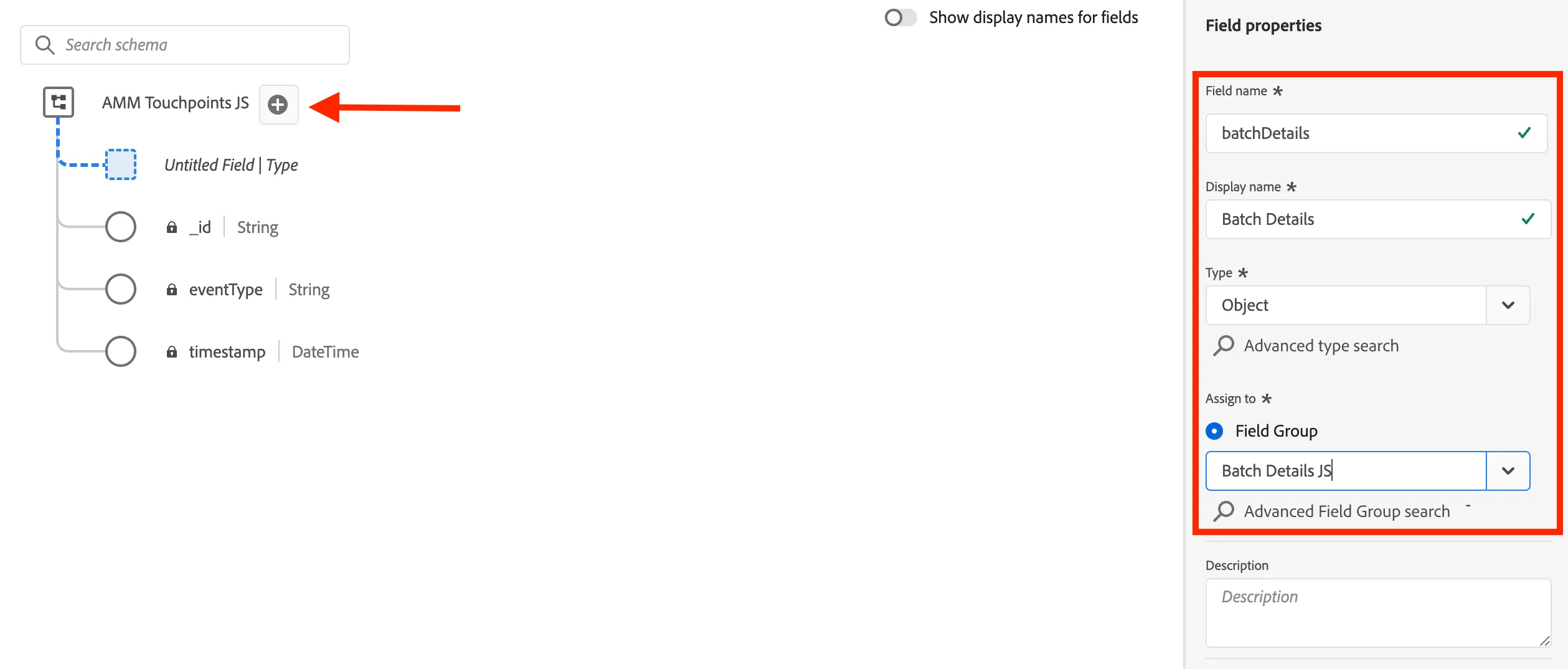

- Click on the Add icon next to the tenant. Name your object. Batch Details
- Set the below within Field Properties on the right panel
- Field name = batchDetails
- Display name = Batch Details
- Type = Object
- Field Group = Batch Details+{{participant initials}}
- Click on Apply at the bottom.
Nesting additional fields within your object

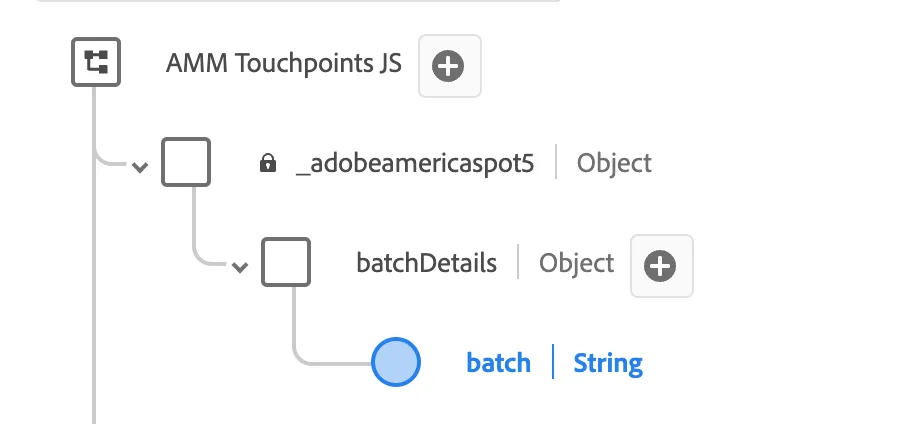

Click on the Add icon next to the newly created object batchDetails. This should create an Untitled Field nested under that object.
Batch
- Field name = batch
- Display name = Batch
- Type = String
- Field Group = Batch Details+{{participant initials}}
Note: be sure to click Apply at the bottom of the Field Properties panel after adding a single field.
Click Save.
Congratulations! You have completed the Schemas exercise.
