Cross Channel Data

IMPORTANT: numbers shown in this guide, including screenshots, may differ from your reports due to different underlying datasets.

Goals

Become familiar with the types of omni-channel data available in CJA

Identify cross-channel sessions

Understand how customers interact and move across multiple devices

Expanded Metrics and Dimensions

Scenario: Before starting ask questions, you need to understand what types of data exist within this data view. With access to customer experience data from all channels via AEP, Customer Journey Analytics enables you to expand your use cases to understand cross channel behaviours.

Task: Explore the metrics and dimensions available.

Add a new Freeform Table to your panel: click the icon at the bottom of the panel, the select the table icon.

Click on the title and rename it as Expanded Metrics and Dimension.

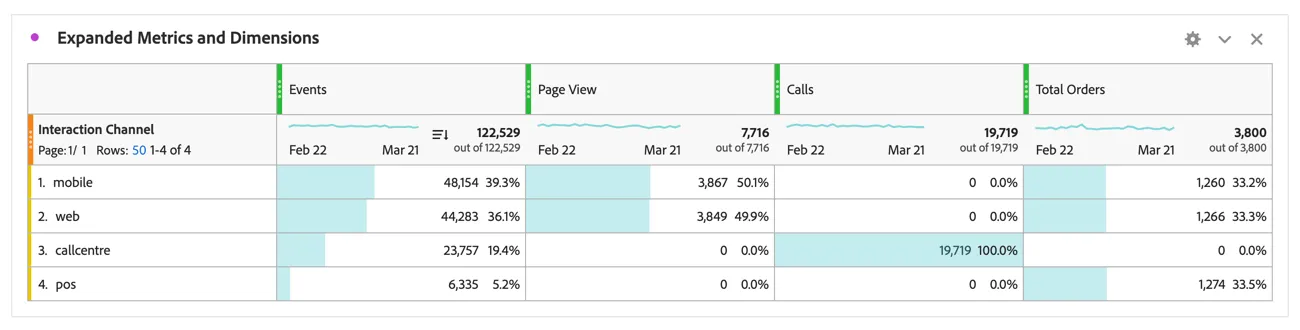

From the left menu, select and add to the table the following components:

Dimensions: Interaction Channel

Metrics: Events, Page View, Calls, Total Orders

Notice that orders are available across multiple channels while calls are only coming from the call centre channel.

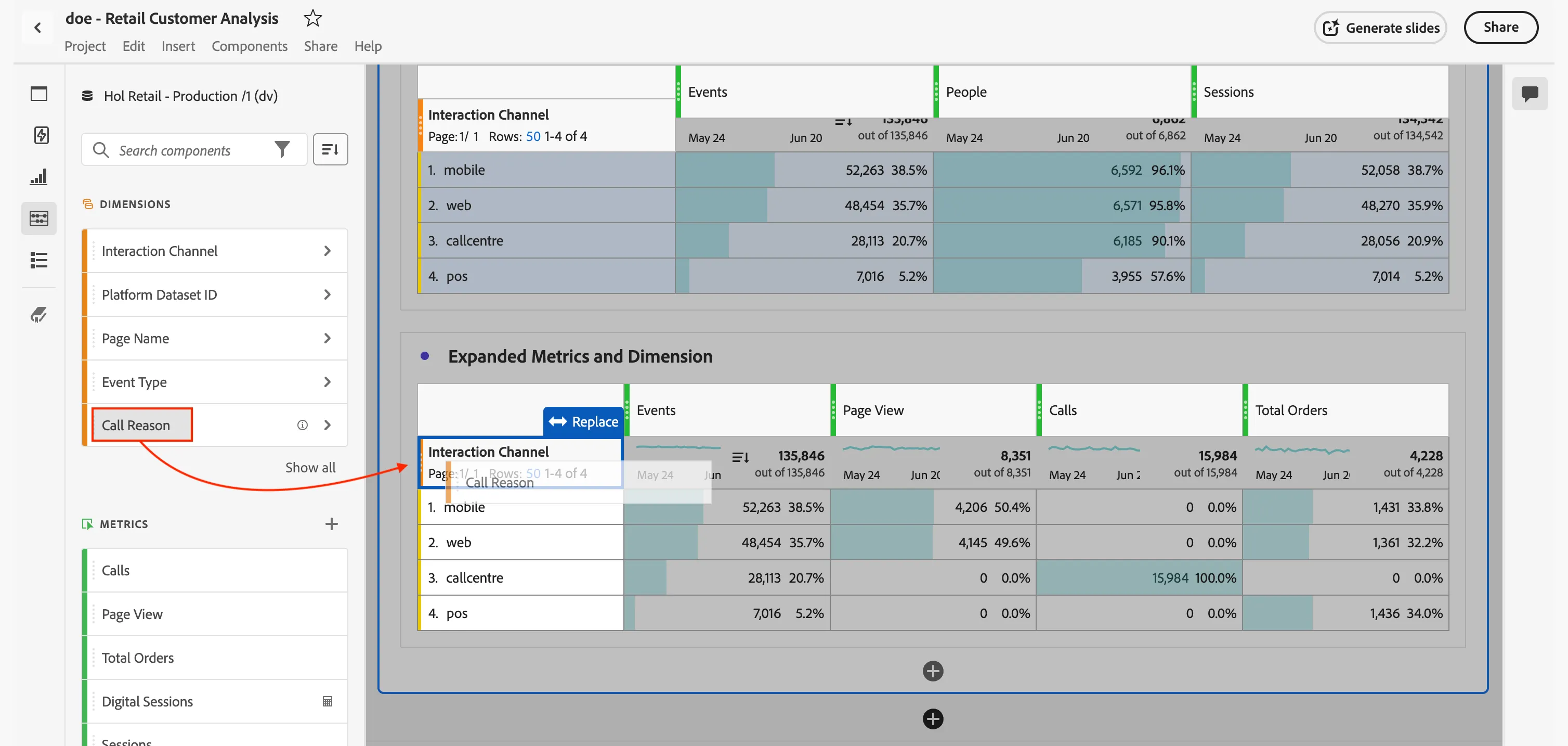

Replace the Interaction Channel dimension with the Call Reason dimension by dragging it over Interaction Channel in the table until the popup prompts to Replace.

This is the reason for a call that a call center agent entered when they spoke with a customer on the phone, events and calls are associated with them but no page views.

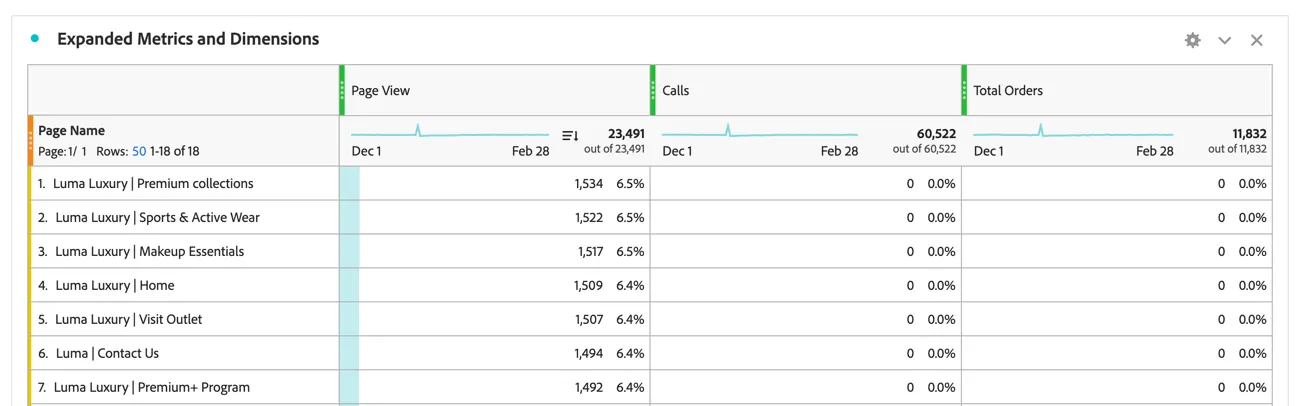

Replace Call Reason with Page Name.

To keep your changes, save your project by going to Project > Save (or press Ctrl+S on Windows, or Command + S on Mac).

Page Views associated with each page (which equals the "Events" metric), but there are no Calls associated with each Page. This is because there are no rows that are both Web and Call rows, they originate from entirely separate datasources and are ingested into separate datasets in Adobe Experience Platform.

Cross Channel Sessions

Scenario: Now that you understand a bit more about the data available, analyse what proportion of customers are interacting across multiple channels within a single session.

Task: Identify cross channel sessions and visualise overlaps.

Build a segment

Segments in CJA are similar to Segments in Adobe Analytics. And once these segments are built in CJA, they can be shared to Experience Platform, so you can use them in Real-time CDP, for example.

Using segments is one way that you can gain more insight into the cross channel data. You can create segments to understand which sessions were "web" only sessions, which were "call center" only and which were in fact "cross channel".

Keep in mind for CJA, there is no concept of "browser" session, the session calculation is controlled by the event timeout set in your data view. As long as the customers interacts on both channels within the timeout window their events will be considered part of the same session in CJA.

Create the Cross-Channel Sessions segment.

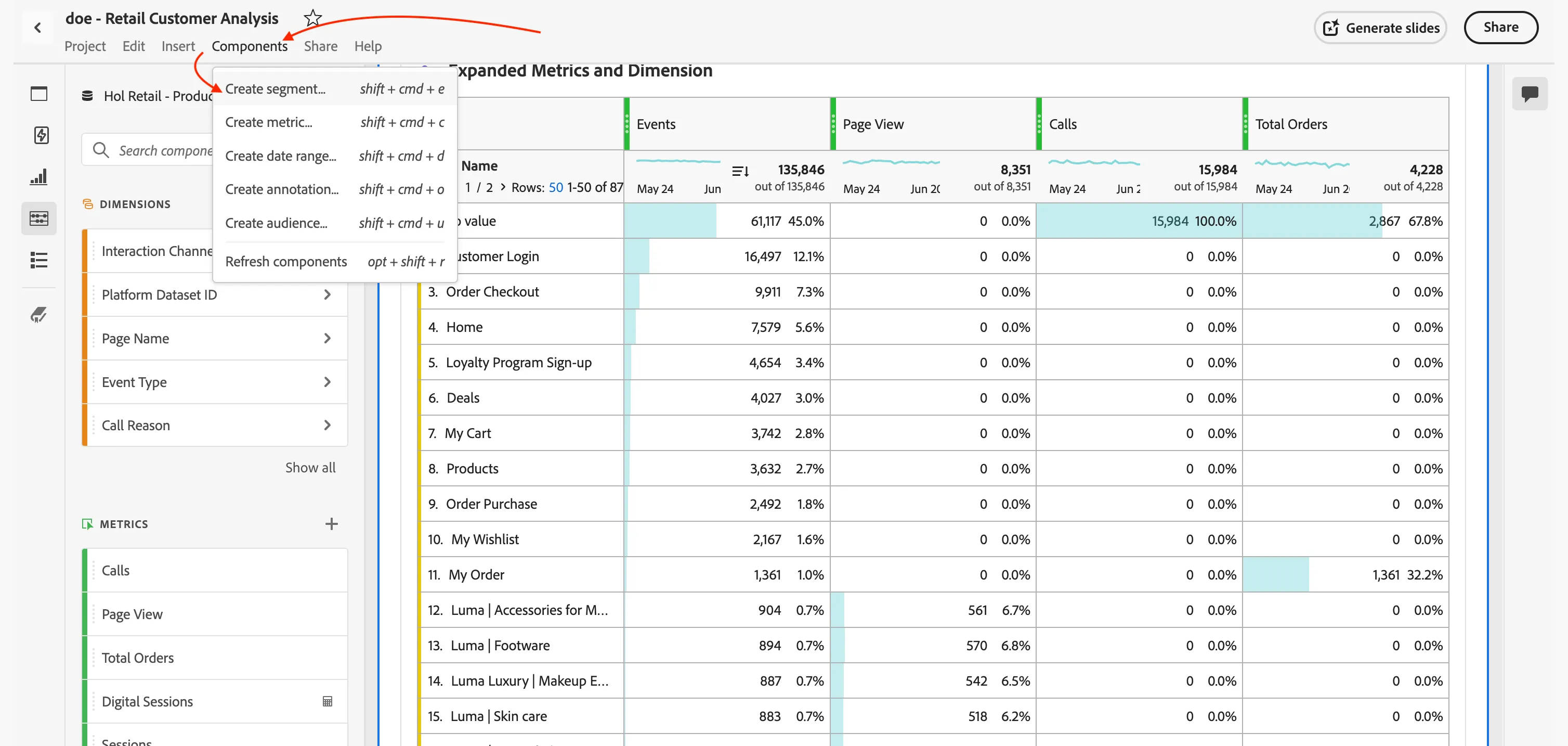

On the main menu, click on Components > Create segment...

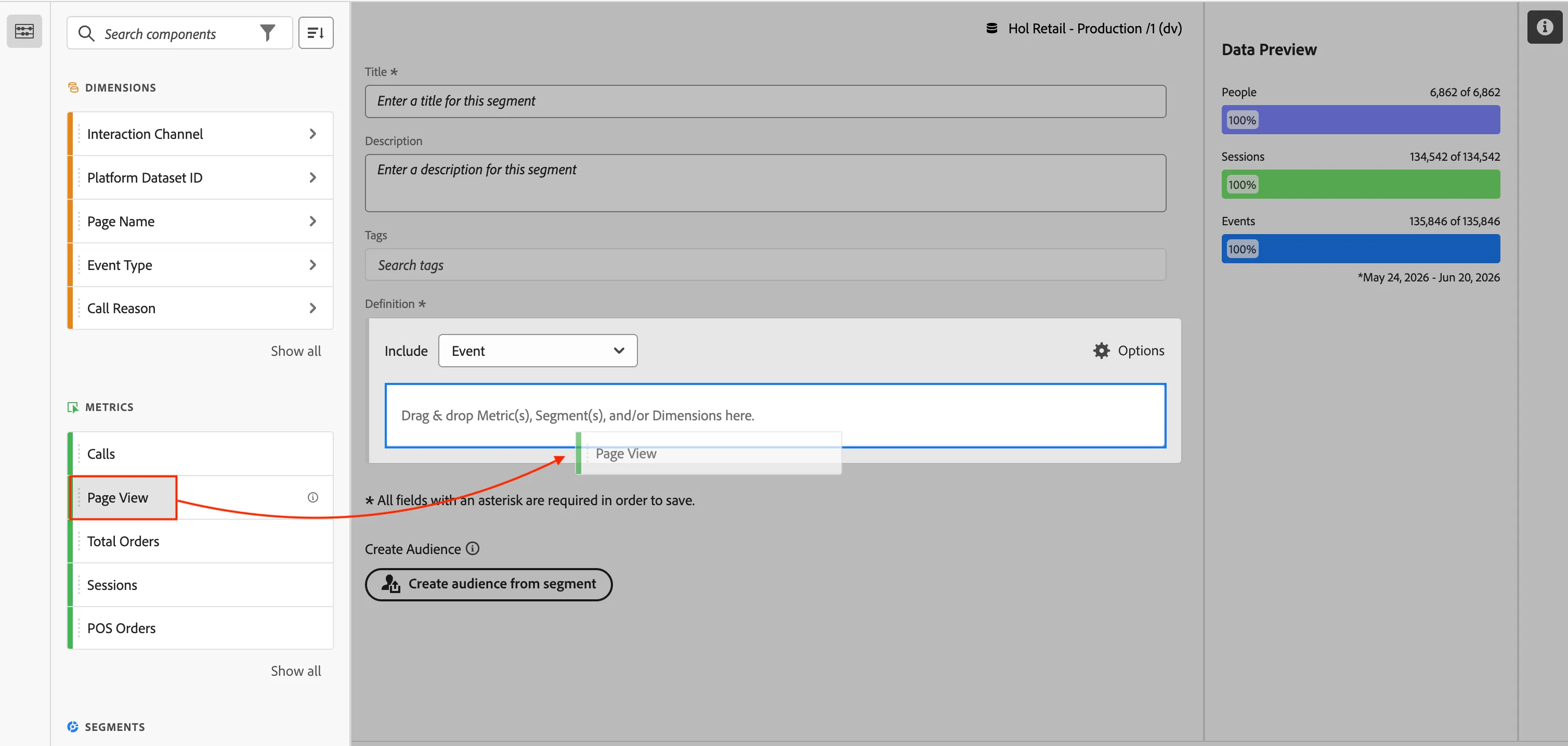

Drag the Event: Page Views metric, and drop it in the Definition section, over the text Drag & drop Metric(s), Segment(s), and/or Dimensions here..

Change the operator from Equals to Exists.

Drag the Event: Calls metric, and drop it below the Page Views metric.

Change the operator for the Calls metric from Equals to Exists.

From the drop down list beside Include, select Session.

Name your segment, [{{LASTNAME}}] - Cross-channel sessions

Click Save.

This segment will find sessions where a customer had at least one Page View and at least one Call in a session.

You can repeat the same steps to create segments with only Web interactions or only Calls. To save time we have created these segments for you:

Sessions including online channels

Sessions including a call

Sessions including a store visit

Analyse Overlaps

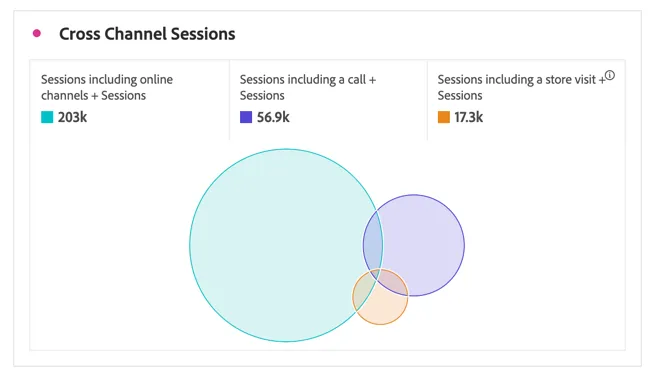

Use a Venn diagram in combination with session based segments to visualise the overlap of customers interacting online, in store and the call centre.

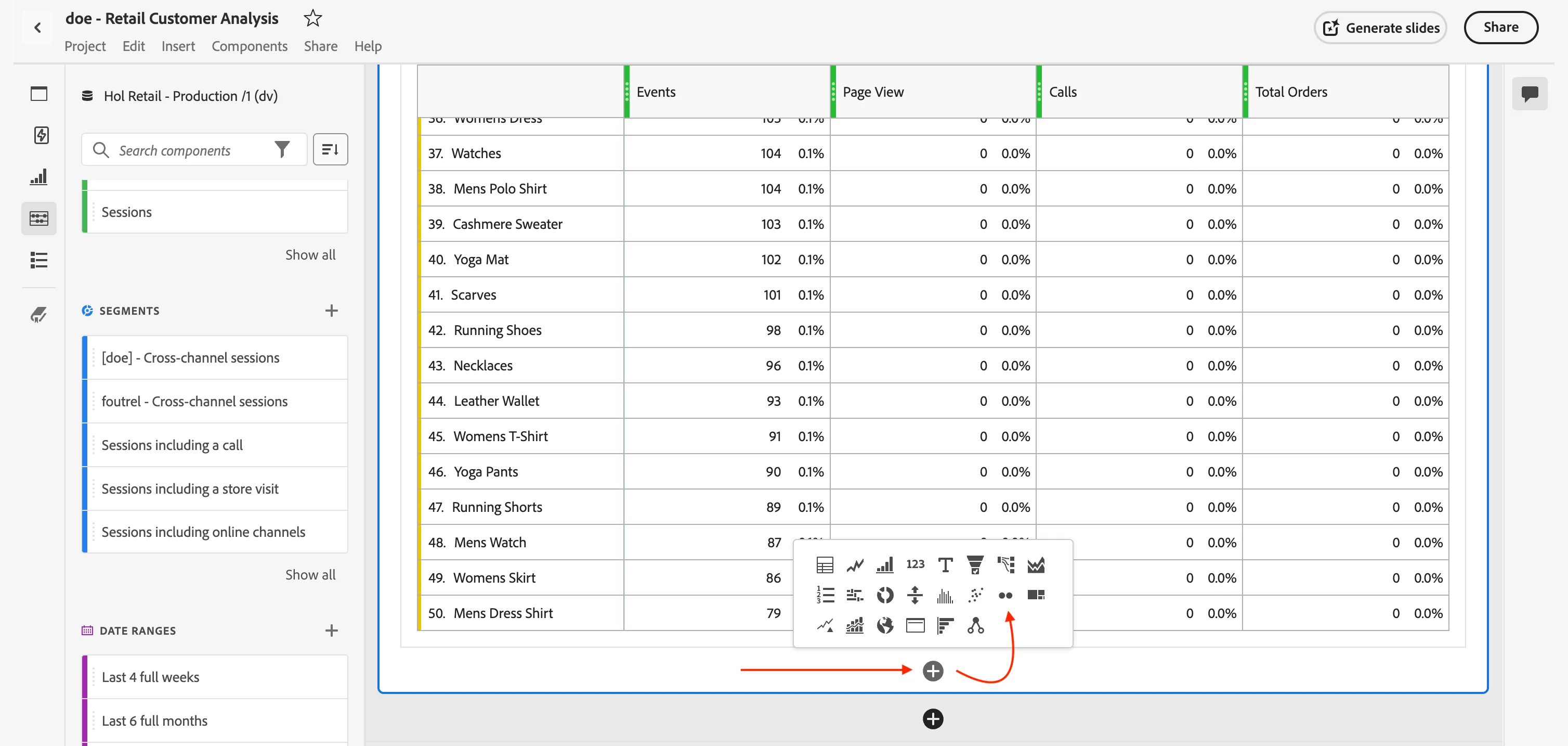

Add a Venn diagram into your panel by clicking the icon at the bottom of the panel, then .

Label the diagram Cross Channel Sessions .

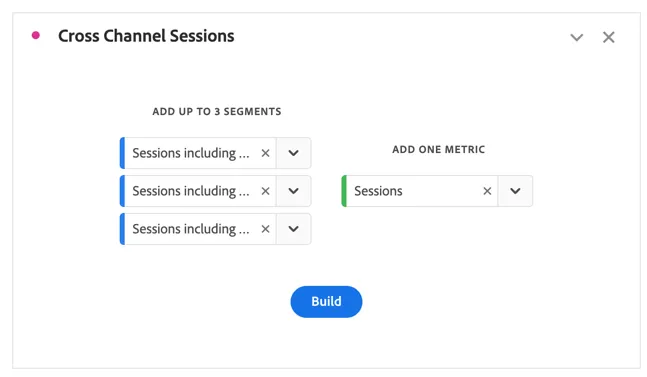

Add the following 3 Segments:

Sessions including online channels

Sessions including a call

Sessions including a store visit

Set the metric to Sessions.

Click to Build.

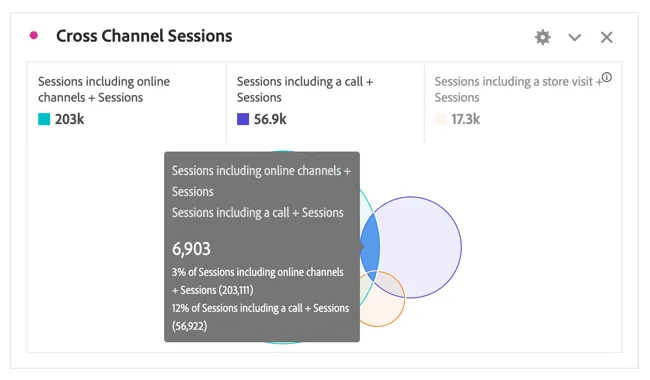

Explore the overlaps by hovering over the intersecting circles.

To keep your changes, save your project by going to Project > Save (or press Ctrl+S on Windows, or Command + S on Mac).

Channel Pathing

Scenario: The Mobile App product owner wants to understand whether customers are mostly starting on the web then moving to the app, completing their journey in app only or vice versa.

Task: Visualise the path customers are taking after starting in the mobile app.

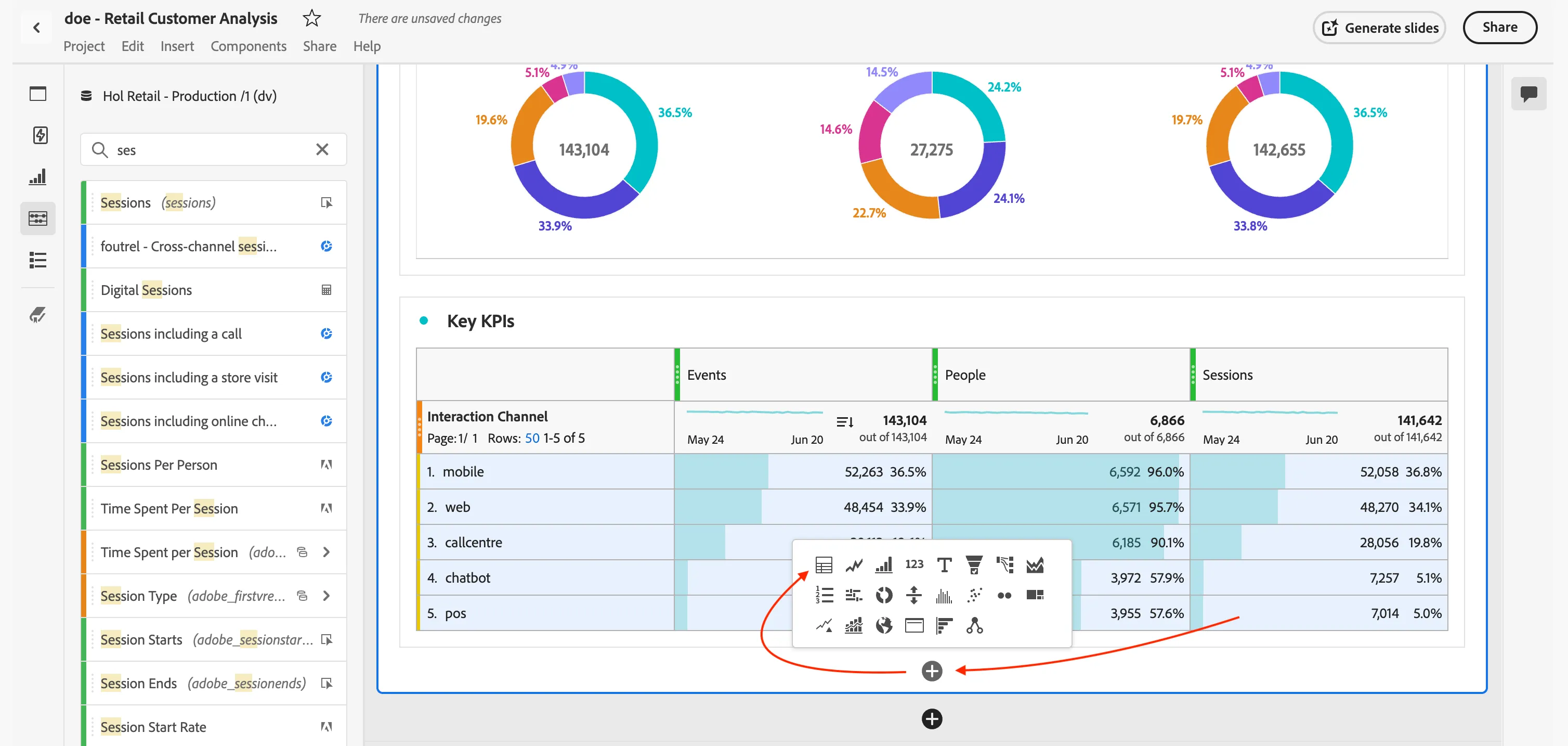

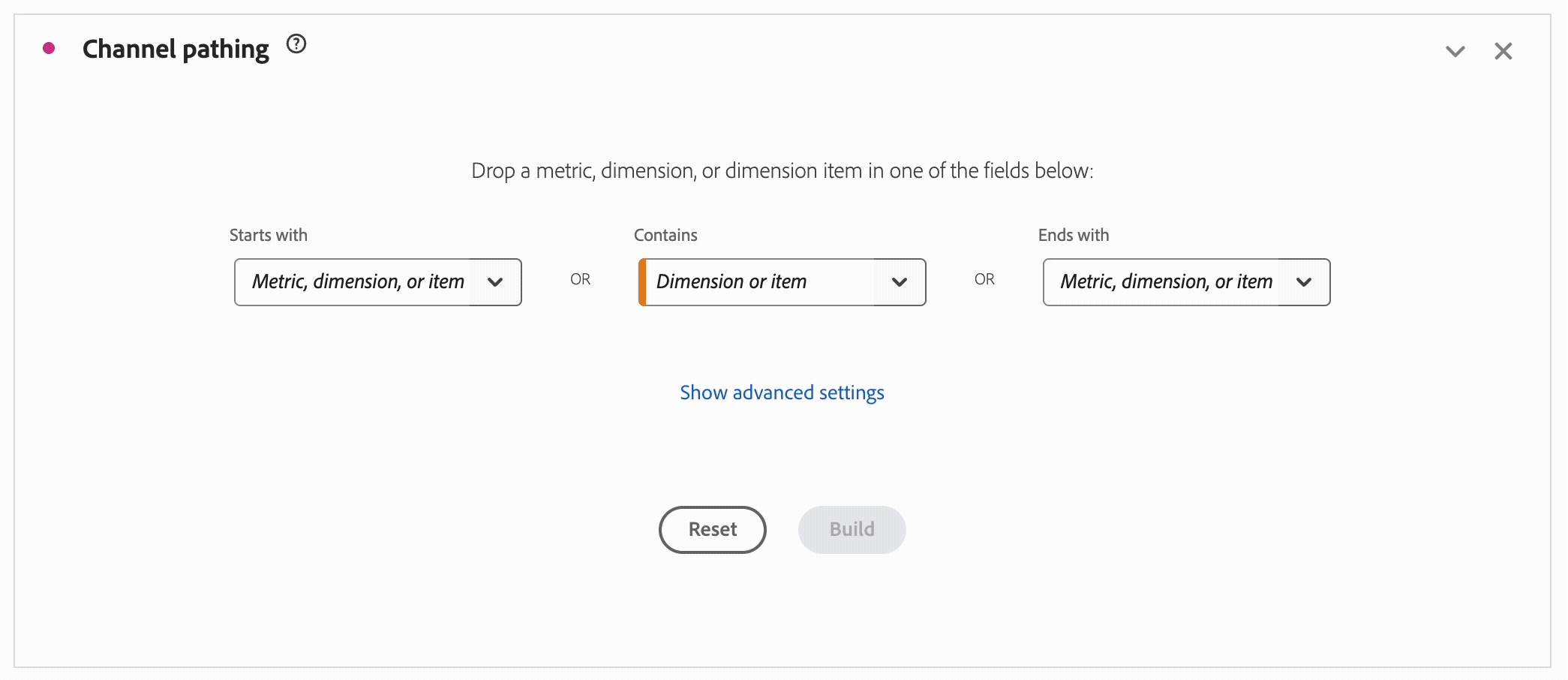

Add a Flow diagram into your panel by clicking the icon at the bottom of the panel, and then icon.

Label it Channel Pathing.

Into the Starts with drop down, search for Interaction Channel dimension, click the arrow and select the Mobile.

Notes on Dimension configuration:

Dropping a dimension as the Entry point will show the top first value seen in that dimension either at a Session or Person level.

Dropping a dimension as the Exit point will show the top last value seen for a dimension at a Session or Person level.

Dropping a dimension or a dimensional element in the middle will show you how often that element is the entry or exit, as well as the top elements a person saw prior or after from a pathing perspective. This can also be configured at the Session or Person level.

Click to Build.

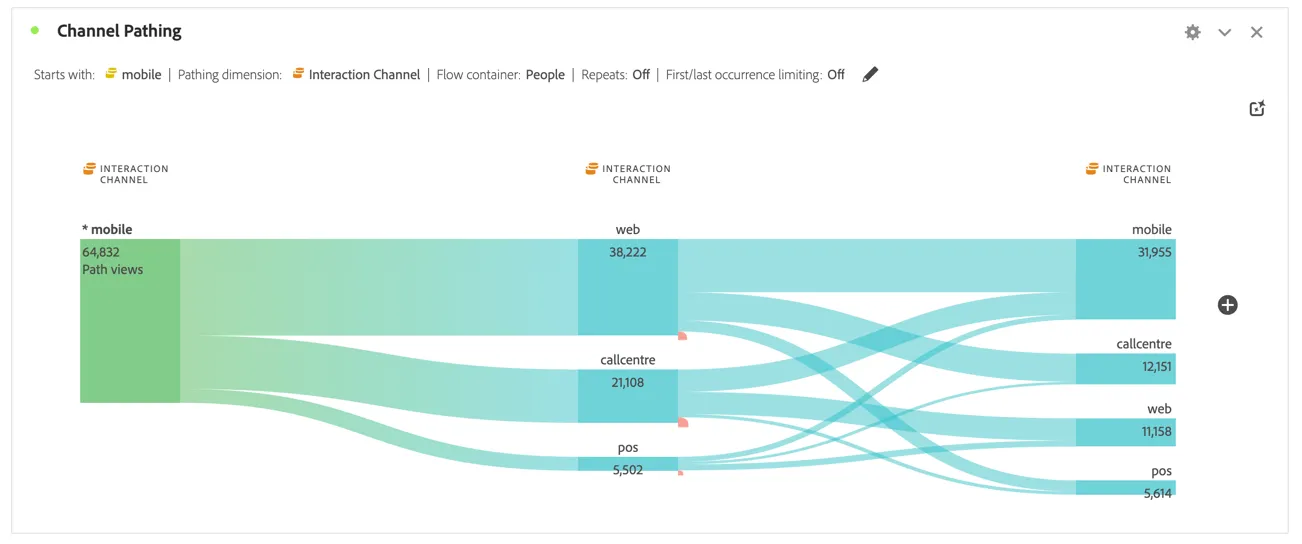

You can notice that there's a lot of people moving to the website after starting on the mobile app. Selecting Create segment for this path will create a segment based on customers that follow that specific path. This becomes an interesting way to do further analysis around the types of customers that follow a specific path.

To keep your changes, save your project by going to Project > Save (or press Ctrl+S on Windows, or Command + S on Mac).

Congratulations, this completes the Cross Channel Data Analysis exercise!
